GENERAL INFORMATION

The torsion axle arm assembly suspension has been adopted.

The coil spring is installed under the rear floor, the torsion axle arm assembly is installed in front of the spare tyre house, and the shock absorber is installed outside, so that the large cabin space is achieved.
The arm bushing with the toe control function is adopted to optimize the tyre steering angle using the bushing deflection caused by lateral force and longitudinal force generated at cornering, so that the good cornering performance is secured.
The layout of shock absorber is optimized for smooth riding.
The hub-integrated unit bearing is adopted for the wheel bearing for sufficient suspension rigidity.

note For more information, refer to GROUP 27, Rear Axle .

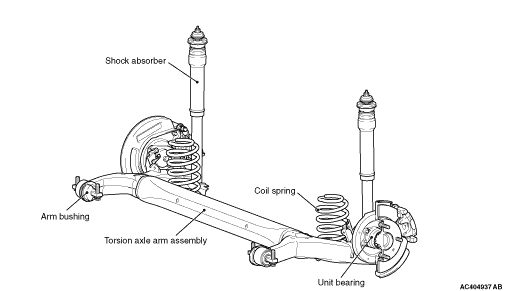

CONSTRUCTION DIAGRAM

Item	Specification
Suspension type	Torsion axle and arm assembly
