REMOVAL AND INSTALLATION


Pre-removal Operation
  • Cowl Top Panel Removal (Refer to GROUP 42, Loose Panel <COLT>, <COLT CZ3>).

 Post-installation Operation
  • Cowl Top Panel Installation (Refer to GROUP 42, Loose Panel <COLT>, <COLT CZ3>).
  • Front Wheel Alignment Adjustment (Refer to ).

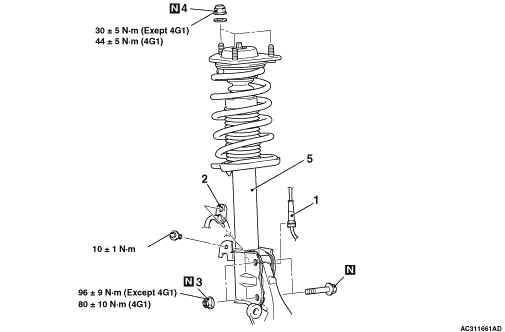

Removal steps


1.
 Front wheel speed sensor harness and strut assembly connection


2.
 Brake hose bracket


3.
 Knuckle and strut connection


4.
 Strut mounting nut


5.
 Strut assembly
