GENERAL INFORMATION
The engine mount system is of an inertia main-axle 3-point support type, and has the following features:
- By arranging the three mounts optimally, idling vibrations and acceleration noise are reduced significantly.
- By incorporating the transmission mounting insulator in the body side member, engine vibration is absorbed efficiently.
- By combining an engine roll stopper rod with the high-strength crossmember, engine vibration is reduced.

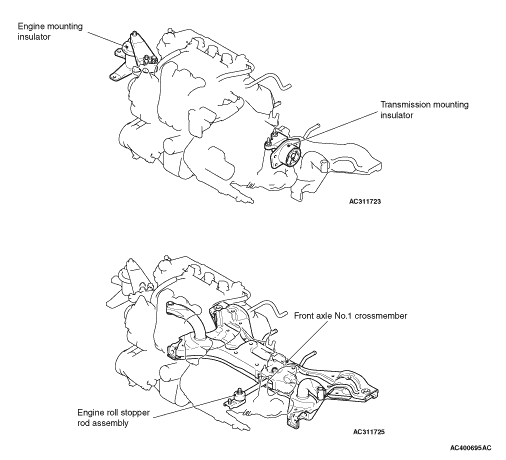

CONSTRUCTION DIAGRAM
)
