The wheel bearing is a unit ball bearing (double-row angular contact ball bearing) for reduced friction.
The wheel bearing incorporates magnetic encoder for wheel speed sensing.

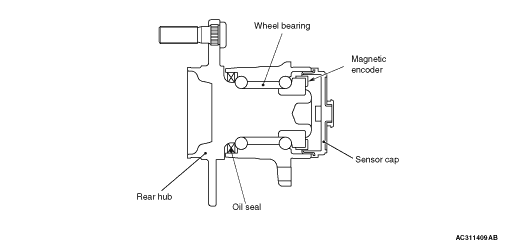

The rear wheel hub assembly combines the hub, wheel bearing, sensor cap, and oil seal in a single unit for fewer parts, better durability, improved assembly precision, and better structural organization.
SPECIFICATION
Item
Specification
Wheel bearing
Type
Unit ball bearing (double-row angular contact ball bearing)
note
The wheel bearing is part of the hub, therefore its size is not listed here.
)
