GENERAL INFORMATION

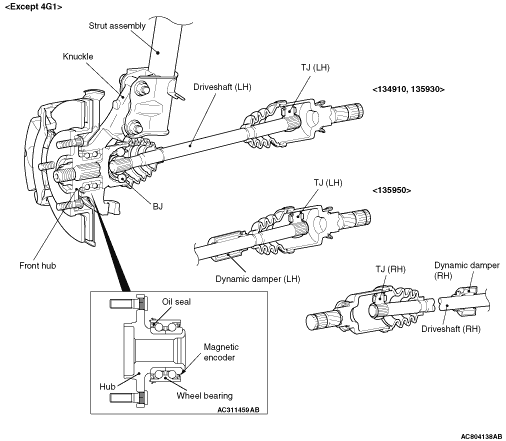

• The wheel bearing is a unit ball bearing (double-row angular contact ball bearing) for reduced friction.

• The wheel bearing incorporates magnetic encoder for wheel speed sensing.

• The front wheel hub assembly combines the hub, wheel bearing and oil seal in a single unit for fewer parts, better durability, improved assembly precision, and better structural organization.

• The driveshaft incorporates BJ-TJ type constant velocity joints with high transmission efficiency for low vibration and noise.

• The dynamic damper is mounted to reduce noise.

• The bracket assembly is mounted to reduce torque steer. <Vehicles with 4G1-RH>

• For environmental protection, a lead-free grease is used on the joints.


SPECIFICATIONS
