GENERAL INFORMATION


Automated manual transmission is a newly introduced, fully integrated and electromechanically operated 6-speed gearbox.
As automated manual transmission is designed based on 6-speed manual gearbox and driven by electric actuators (motors) via sophisticated twin-drum shift mechanism, it gives our customers "easy to drive as A/T", "fun to drive and high fuel efficiency as M/T".

PROJECT CONCEPT
Automated manual transmission is designed so as to achieve optimal balance of high fuel efficiency and comfort (easy to drive, fast to shift), owing to new mechanism, twin-drum integrated automated manual transmission and sophisticated control logic.
It provides best in class most sophisticated driving impressions, comfort and sporty, among many of compact class cars in the world.

SPECIFICATIONS


Item
 Specification
Transmission model
 F6SGA-1-41
Engine model
 135
Transmission type
 6-speed forward, 1-speed reverse
Transmission gear ratio
 1st
 3.071
2nd
 1.913
3rd
 1.258
4th
 0.943
5th
 0.763
6th
 0.643
Reverse
 3.231
Final reduction ration
 4.529
Transmission oil
 Specified lubricants
 DiaQueen WIDE GEAR OIL G-1 or Castrol/Burmah gear oil BOT328 (or exact equivalents)
Quantity L
 1.75

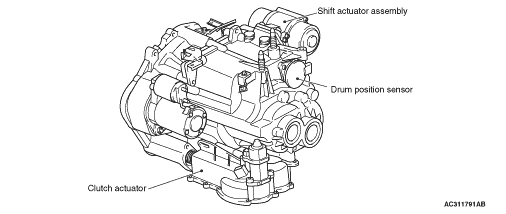

OUTSIDE VIEW
