DISASSEMBLY AND REASSEMBLY


caution
  • Pay attention to the lock pin as it can possibly be pulled out.
  • If the lock pin is pulled out, the differential Cpl. must be replaced.

<F5MGA>

Disassembly steps
<<A>>
 >>B<<
 1.
 Tapered roller bearing
<<B>>
 >>A<<
 2.
 Tapered roller bearing


3.
 Differential cover


4.
 Ring gear


5.
 Differential Cpl.

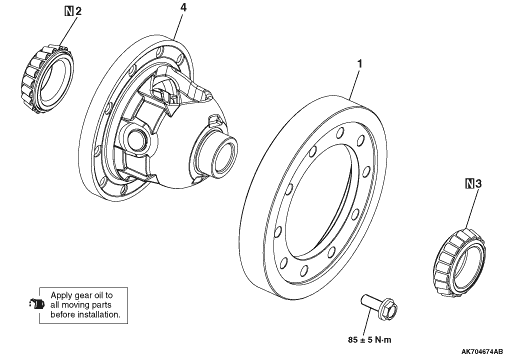

<F5MGB>

Disassembly steps


1.
 Ring gear
<<A>>
 >>B<<
 2.
 Tapered roller bearing
<<B>>
 >>A<<
 3.
 Tapered roller bearing


4.
 Differential Cpl.

DISASSEMBLY SERVICE POINTS

<<A>> TAPERED ROLLER BEARING REMOVAL
1.Using a chisel or the like, knock off the roller cage of the tapered roller bearing.

2. Using the special tools, remove the tapered roller bearing.

  • Bearing remover (MD998917)
  • Snap ring installer (MD998808)

<<B>> TAPERED ROLLER BEARING REMOVAL
1.Using a chisel or the like, knock off the roller cage of the tapered roller bearing.

2.Using the special tools, remove the tapered roller bearing.

  • Bearing remover (MD998917)
  • Snap ring installer (MD998808)

REASSEMBLY SERVICE POINTS

>>A<< TAPERED ROLLER BEARING INSTALLATION

Using special tool, install the tapered roller bearing.

  • Installer cap (MD998012)
  • Installer-100 (MD998813)
  • Installer adapter (MD998823)

>>B<< TAPERED ROLLER BEARING INSTALLATION

Using special tool, install the tapered roller bearing.

  • Installer cap (MD998012)
  • Installer-100 (MD998813)
  • Installer adapter (MD998823)
