Inspection Procedure
2: Clutch actuator system malfunction
OPERATION
The clutch actuator operates the clutch according to the signal from the engine-A-M/T-ECU.
PROBABLE CAUSES
- Malfunction of clutch actuator
- Damaged harness wires and connectors
- Malfunction of the engine-A-M/T-ECU
|
|
STEP 1. Connectors check: A-08 engine-A-M/T-ECU connector,
A-115 clutch actuator connector.
|
|
Check for the contact with terminals.
Q.
Is the check result normal?
 Go to Step 2.
 Repair the defective connector.
|
|
|

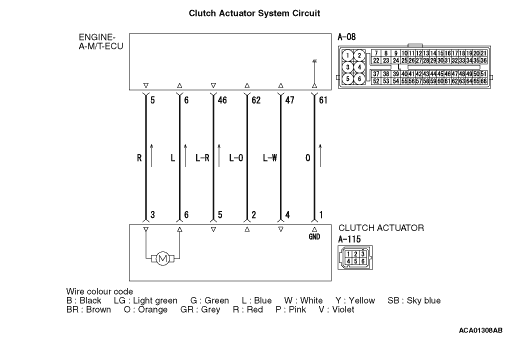

STEP 2. Check the wiring harness between clutch actuator connector
A-115 terminal No.1, 2, 3, 4, 5, 6 and engine-A-M/T-ECU connector A-08 terminal No.61,
62, 5, 47, 46, 6.
|
|
Check the wiring harness for short and open circuit.
Q.
Is the check result normal?
Go to Step 3.
Repair the wiring harness.
|
|
|
STEP 3. Clutch actuator replacement.
|
|
|
(1)Replace the clutch actuator.
|
|
|
(2)Test drive the vehicle.
|
|
|
(3)Check if a malfunction takes place again.
|
|
|
Q.
Does a malfunction take place again?
|
|
|
Go to Step 4.
|
|
|
|
|
|
The inspection is complete.
|
|
|
|
|
|
STEP 4. Engine-A-M/T-ECU replacement.
|
|
|
(1)Replace the engine-A-M/T-ECU. Then perform the variant coding and write
the VIN data (Refer to GROUP 00, Precautions Before Service - How to Perform Variant Coding  ).
|
|
|
(2)Test drive the vehicle.
|
|
|
(3)Check if a malfunction takes place again.
|
|
|
Q.
Does a malfunction take place again?
|
|
|
Go to Step 1.
|
|
|
|
|
|
The inspection is complete.
|
|
|
|
)
)
)
