Automated manual transmission control relay check

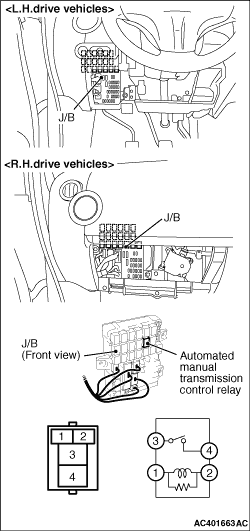

1.Removal the automated manual transmission control relay. 2.Use the jumper leads to connect automated manual transmission control relay terminal 2 to the negative battery terminal and terminal 1 to the positive battery terminal. 3.Check the continuity between automated manual transmission control relay connector terminals 3 and 4 while alternately connecting and disconnecting the jumper leads from the battery terminals. Jumper leads Continuity between terminals 3 and 4 Connected Continuity (Less than 2 Ω) Disconnected Open circuit 4.If there is a malfunction, replace the automated manual transmission control relay.
