DISASSEMBLY AND REASSEMBLY

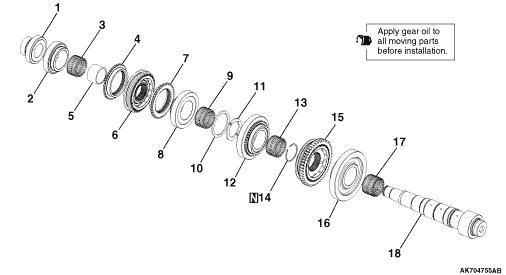

Disassembly steps <<A>> >>E<< 1. Fixed gear 5th 2. Speed gear 4th 3. Needle bearing 4. Dog body 4th <<B>> >>D<< 5. Needle bearing inner race <<B>> >>C<< 6. Synchronizer unit 3/4 <<B>> 7. Dog body 3th <<B>> 8. Speed gear 3rd 9. Needle bearing 10. Clamp ring 11. Split shim 12. Speed gear 2nd 13. Needle bearing >>B<< 14. Snap ring <<C>> >>A<< 15. Synchronizer unit 1/2 <<C>> 16. Speed gear 1st 17. Needle bearing 18. Output shaft

Using the special tool, (MB992257), support the fixed gear 5th and remove the fixed gear 5th. <F5MGA>

Using the special tool, (MB992262), support the fixed gear 5th and remove the fixed gear 5th. <F5MGB>

Using the special tool, (MD998917) support the speed gear 3rd and remove the needle bearing inner race, synchronizer unit 3/4, dog body 3rd and speed gear 3rd.

Using the special tool, (MD998917) support the speed gear 1st and remove the synchronizer unit 1/2 and speed gear 1st.

Using special tools, install the synchronizer unit 1/2. Installer cap (MD998812) Installer-200 (MD998814) Installer adapter (MD998825)

Install the snap ring that has selected. note Try to first install the thicker snap ring to always use the thickest snap ring.

Using special tools, install the synchronizer unit 3/4. Installer cap (MD998812) Installer-200 (MD998814) Installer adapter (MD998825)

Using special tools, install the needle bearing 4th inner race. Installer cap (MD998812) Installer-200 (MD998814) Installer adapter (MD998819)

Using special tools, install the fixed gear 5th. Installer cap (MD998812) Installer-100 (MD998813) Installer adapter (MD998819)
