REMOVAL AND INSTALLATION


caution After the replacement of the neutral position sensor, learn the neutral position using M.U.T.-III. (Refer to GROUP 00, Precautions before Service - Learning Procedure for Neutral Position .)
Pre-removal and Post-installation OperationAir cleaner assembly (Refer to GROUP 15 ).

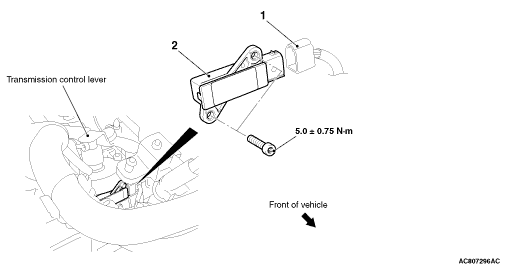

Removal step


1.
Neutral position sensor connector


2.
Neutral position sensor
