| Item |
Specification |
|
| Engine model |
134, 135 |
4G1 |
| Clutch disc type |
Dry single plate type |
|
| Clutch disc facing diameter OD x ID mm |
200 × 140 |
216 × 144 |
| Clutch cover type |
Diaphragm spring type |
|
| Clutch cover setting load N |
3,600 - 4,100 |
5,400 - 6,000 |

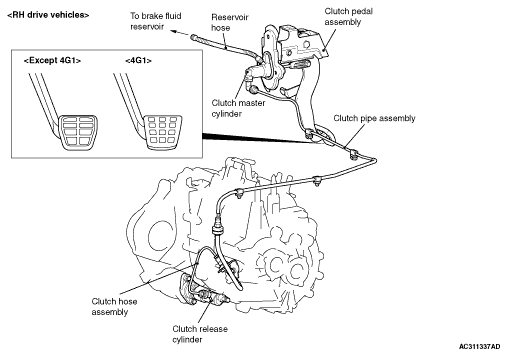

| Control system |
Hydraulic type |
|
| Clutch fluid |
Brake fluid DOT 4 + |
|
)
