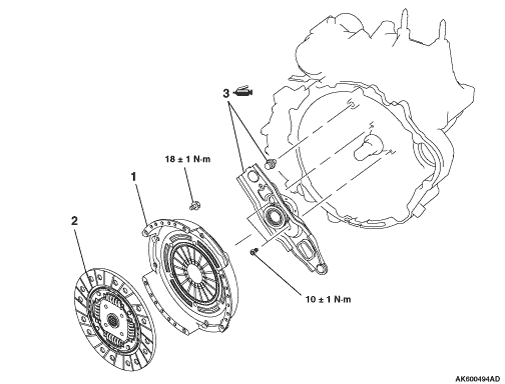

| Removal steps |
|||
| 1. |
Clutch cover |
||
| 2. |
Clutch disc |
||
>>A<< |
3. |
Mechanical release unit |
|
|
REASSEMBLY SERVICE POINT |
>>A<< MECHANICAL RELEASE UNIT INSTALLATION |
) |

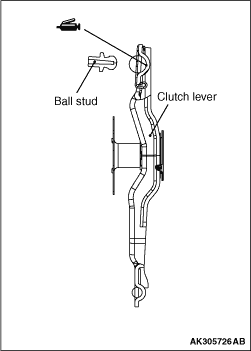

Apply grease to the illustrated positions of the clutch lever. Specified grease: OLISTA LONGTIME 3EP or MOLYCOTE VN 2461C |
