REMOVAL AND INSTALLATION

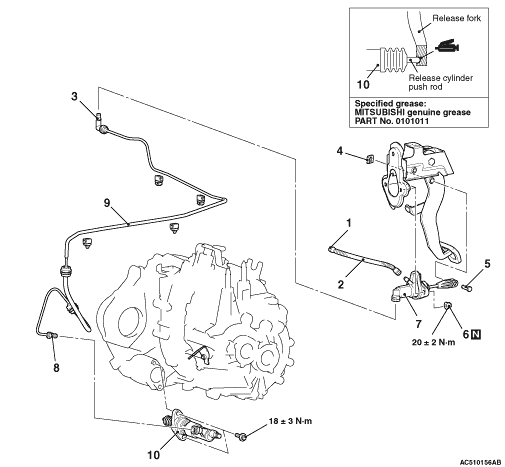

<LH drive vehicles> Clutch master cylinder removal steps · Brake master cylinder assembly and brake booster (Refer to GROUP 35A, Master cylinder assembly and brake booster ). 1. Reservoir hose <<A>> >>B<< 2. Clutch hose and clutch master cylinder connection · Cowl side trim <LH> (Refer to GROUP 52A, Interior Trim <COLT> or <COLT-CZ3>). 3. Clutch master cylinder clip 4. Clutch master cylinder pin 5. Nut 6. Clutch master cylinder Clutch release cylinder removal steps <<B>> >>A<< 8. Clutch pipe assembly connection 10. Clutch release cylinder Clutch line removal steps · Brake master cylinder assembly and brake booster (Refer to GROUP 35A, Master cylinder assembly and brake booster ). <<A>> >>B<< 2. Clutch hose and clutch master cylinder connection 7. Clutch hose <<B>> >>A<< 8. Clutch pipe assembly connection 9. Clutch pipe assembly

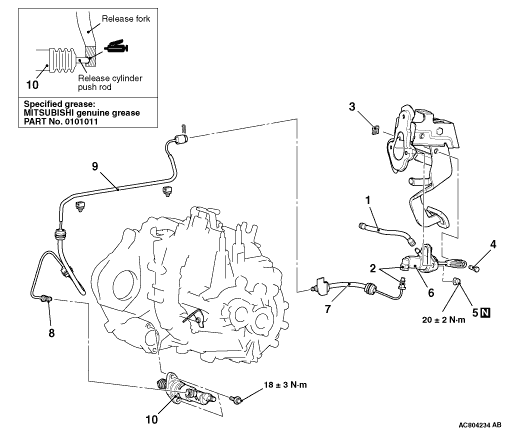

<RH drive vehicles> Clutch master cylinder removal steps 1. Reservoir hose and brake fluid reservoir connection 2. Reservoir hose <<A>> >>B<< 3. Clutch pipe assembly and clutch master cylinder connection · Under cover (Refer to GROUP 52A, Instrument panel ). 4. Clutch master cylinder clip 5. Clutch master cylinder pin 6. Nut 7. Clutch master cylinder Clutch release cylinder removal steps <<B>> >>A<< 8. Clutch pipe assembly connection 10. Clutch release cylinder Clutch line removal steps <<A>> >>B<< 3. Clutch pipe assembly and clutch master cylinder connection <<B>> >>A<< 8. Clutch pipe assembly connection 9. Clutch pipe assembly

Use a screwdriver to push out the clip, and disconnect the clutch hose or clutch pipe assembly from the clutch master cylinder.

Use a screwdriver to push out the clip, and disconnect the clutch pipe assembly from the clutch release cylinder and clutch hose.

Reset the clip in the original position and connect the clutch pipe assembly to the clutch release cylinder and clutch hose.

Reset the clip in the original position and connect the clutch hose or clutch pipe assembly to the master cylinder.
