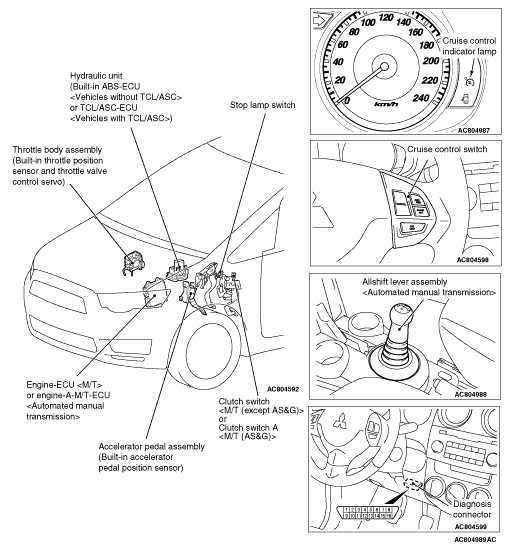

Component
|
Function
|
ABS-ECU <Vehicles without TCL/ASC> or TCL/ASC-ECU <Vehicles
with TCL/ASC>
|
- Outputs the cruise control cancel
signal to the engine-ECU <M/T> or engine-A-M/T-ECU <Automated manual transmission>. <Vehicles
with TCL/ASC>
- The stop lamp switch signal is sent to the engine-ECU <M/T> or
engine-A-M/T-ECU <Automated manual transmission>.
- The vehicle speed signal is sent to the engine-ECU <M/T> or engine-A-M/T-ECU <Automated
manual transmission>.
|
Accelerator pedal position sensor
|
Informs the engine-ECU <M/T> or engine-A-M/T-ECU <Automated
manual transmission> of the accelerator pedal depression.
|
Allshift lever assembly <Automated manual transmission>
|
Because the constant speed driving is cancelled by the shift lever
operation, it detects the "s.b.", "R" and "N" position.
|
Clutch switch <M/T (except AS&G)> or
clutch switch A <M/T (AS&G)>
|
The constant speed driving is cancelled by the clutch operation,
the clutch pedal operation is detected.
|
Cruise control indicator lamp
|
- It is included in the combination
meter and illuminates when the "ON/OFF" switch is pressed (cruise control system: ON).
- With the flashing of indicator lamp, read the diagnosis code for the cruise control system.
|
Cruise control switch
|
"ON/OFF" switch
|
Power switch for cruise control system.
|
"ACC/RES" switch
|
Vehicle speed is set with the "ACC/RES" switch
and "COAST/SET" switch.
|
"COAST/SET" switch
|
"CANCEL" switch
|
Cancels the constant speed driving.
|
Diagnosis connector
|
- If the M.U.T.-III is connected,
the input check code from the engine-ECU <M/T> or engine-A-M/T-ECU <Automated manual
transmission> can be read.
|
engine-ECU <M/T> or engine-A-M/T-ECU <Automated
manual transmission>
|
- Based on the input signal from sensors
and switches, the throttle opening angle indication signal is sent.
- Based on the input signal from each sensors and switches, the shift control signal
is sent to the A/T control section. <Automated manual transmission>
- Based on the vehicle speed signal from the ABS-ECU <Vehicles without TCL/ASC> or
TCL/ASC-ECU <Vehicles with TCL/ASC>, it calculates the vehicle speed.
- Based on the shift lever "s.b.", "R" and "N" position signal of the allshift lever assembly,
it cancels constant speed driving.
- To the cruise control indicator lamp, the cruise control system ON/OFF
signal is sent.
- The diagnosis code of the cruise control system are sent to the cruise control indicator
lamp.
- The input check code of the cruise control system are sent to the diagnosis connector.
|
Stop lamp switch
|
- The constant speed driving is cancelled
by the brake operation, the brake pedal operation is detected.
- As for the stop lamp switch, two built-in switches, the stop lamp switch which is also
used for the stop lamp illumination and the brake switch which is used exclusively for the cruise
control, are integrated, and thus the reliability is enhanced.
|
Throttle valve control servo
|
The throttle valve opens and closes in response to the throttle angle
control signal from the engine-ECU <M/T> or engine-A-M/T-ECU <Automated
manual transmission>.
|
Throttle position sensor
|
Informs the engine-ECU <M/T> or engine-A-M/T-ECU <Automated
manual transmission> of the throttle valve opening angle.
|
)
