GENERAL INFORMATION
For the accelerator system, an electronic throttle valve control system has been adopted, eliminating
of an accelerator cable. This system detects the amount of the accelerator pedal movement by
using an accelerator pedal position sensor in the accelerator pedal assembly for electronic
control of the throttle valve angle.

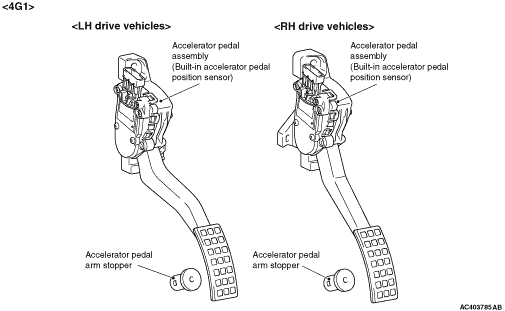

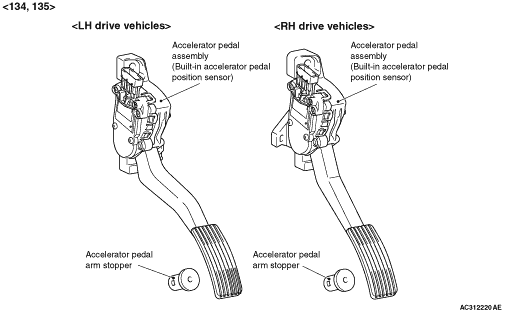

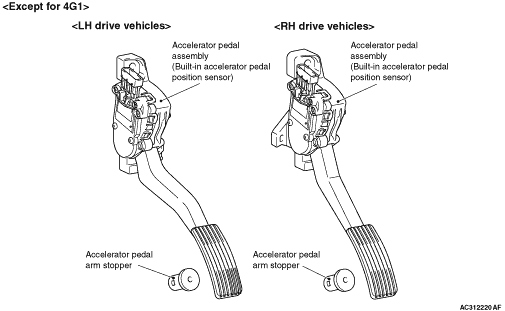

CONSTRUCTION DIAGRAM
)
)
