REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Air Cleaner assembly Removal and Installation (Refer to GROUP 15 - Air Cleaner ) <Except for 4G1>.
  • Air Cleaner assembly Removal and Installation (Refer to GROUP 15 - Air Cleaner ) <4G1>.

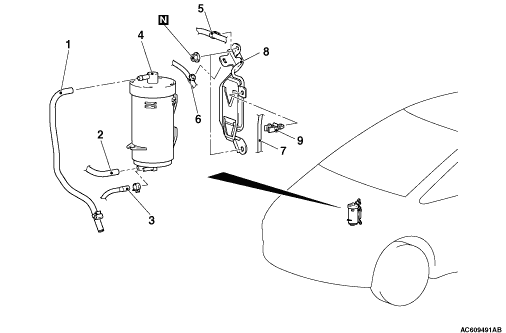

Removal steps


1.
 Fuel vapour control line hose


2.
 Purge hose connection


3.
 Fuel vapour control line hose connection


4.
 Fuel vapour canister


5.
 Vacuum hose connection


6.
 Harness connection


7.
 Brake pipe connection


8.
 Fuel vapour canister bracket


9.
 Clamp
