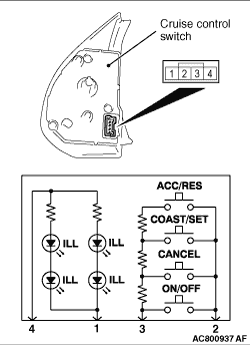

1.Remove the cruise control switch (Refer to  ).
|
|
2.Measure the resistance between terminal No.2 and terminal No.3 when each of the "ON/OFF",
"CANCEL", "COAST/SET" and "ACC/RES" switches is pressed. If the values measured
at the time each switch is pressed correspond to those in the table below, the resistance values
are correct.
|
|
Terminal connector of tester
|
Switch position
|
Specified condition
|
2 - 3
|
All switches are released.
|
Open circuit
|
"ON/OFF" switch is pressed
|
Continuity (less than 2 ohms)
|
"CANCEL" switch is pressed
|
202.5 - 208 Ω
|
"COAST/SET" switch is pressed
|
610.5 - 624.5 Ω
|
"ACC/RES" switch is pressed
|
1838 - 1877 Ω
|
|
3.Check that illumination of the cruise control switch turns on when the battery positive
terminal is connected to cruise control switch connector terminal No.4, and the battery negative
terminal is connected to cruise control switch connector terminal No.1.
|
|
|
Refer to GROUP 35A - Brake Pedal, Stop Lamp Switch Check .
|
|
|
Refer to GROUP 21A - Clutch Pedal, Clutch Switch Check .
|
|
|
Refer to GROUP 13B - On-vehicle Service, Throttle Valve Control Servo Check <135,
4A9>.
|
|
|
Refer to GROUP 13C - On-vehicle Service, Throttle Valve Control Servo Check <4G1>.
|
)
