SPECIAL TOOLS


Tool
 Number
 Name
 Use

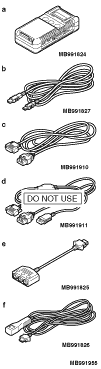

MB991955

    a: MB991824
    b: MB991827
    c: MB991910
    d: MB991911
    e: MB991825
    f: MB991826
 M.U.T.-III sub-assembly

    a: Vehicle Communication Interface (V.C.I.)
    b: M.U.T.-III USB cable
    c: M.U.T.-III main harness A (Vehicles with CAN communication system)
    d: M.U.T.-III main harness B (Vehicles without CAN communication system)
    e: M.U.T.-III measurement adapter
    f: M.U.T.-III trigger harness
caution M.U.T.-III main harness A should be used. M.U.T.-III main harness B should not be used for this vehicle. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Checking data list.


MB991223

    a: MB991219
    b: MB991220
    c: MB991221
    d: MB991222
 Harness set

    a: Check harness
    b: LED harness
    c: LED harness adapter
    d: Probe
 Making voltage and resistance measurement during troubleshooting

    a: Connector pin contact pressure inspection
    b: Power circuit inspection
    c: Power circuit inspection
    d: Commercial tester connection


MB992006
 Extra fine probe
 Making voltage and resistance measurement during troubleshooting
