GENERAL INFORMATION
The cruise control system, which provides the constant speed driving without depressing the accelerator pedal at a vehicle speed determined by the driver (within the range from approximately 40 to 200 km/h <M/T> or approximately 40 to 170 km/h <Automated manual transmission>).
For this cruise control system, in conjunction with the electronic throttle valve control system, the engine-ECU <M/T> or engine-A-M/T-ECU <Automated manual transmission> electronically controls the throttle valve.

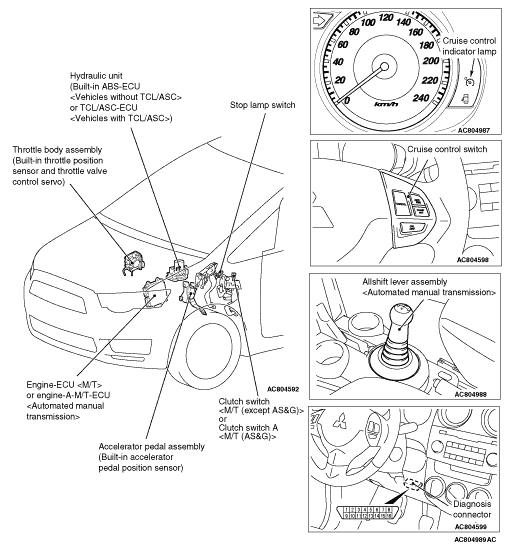

CONSTRUCTION DIAGRAM
)
