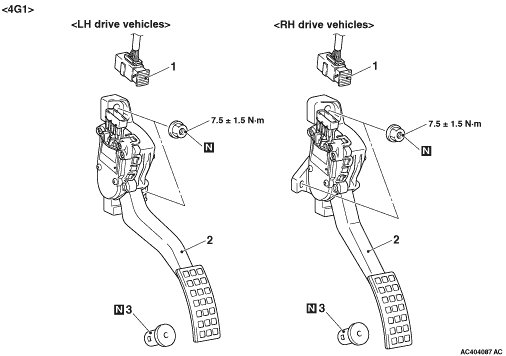

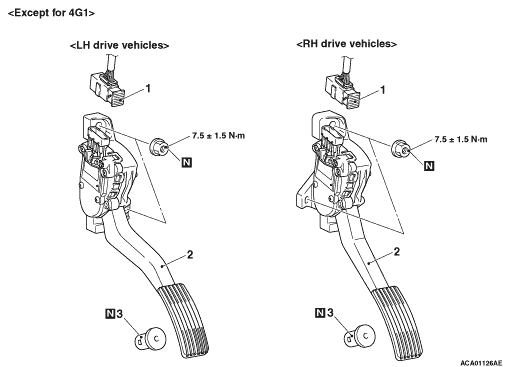

| Removal steps |
|||
<<A>> |
1. |
Accelerator pedal position sensor connector |
|
| 2. |
Accelerator pedal assembly |
||
| >>A<< |
3. |
Accelerator pedal arm stopper |
| caution | Never loosen the screw fixing the accelerator pedal
assembly resin cover. If the screw is loosened, the sensor incorporated in the resin cover is
misaligned and the accelerator pedal position sensor does not work normally. |
|
|
REMOVAL SERVICE POINT |
<<A>> ACCELERATOR PEDAL POSITION SENSOR CONNECTOR REMOVAL |
) |
Slide out the connector lock towards the direction shown, and disconnect
the connector. |
INSTALLATION SERVICE POINT |
>>A<< ACCELERATOR PEDAL ARM STOPPER INSTALLATION |
) ) |
1.Insert the accelerator pedal arm stopper straight into the stud bolt of the floor. 2.Install the accelerator pedal arm stopper securely by turning it clockwise until its underside contacts with the body or body bracket as shown in the figure. 3.After the installation, slightly pull the accelerator pedal arm stopper by hand to check that it cannot be removed easily (appropriate holding power: 100N or more). |
