REMOVAL AND INSTALLATION <4G1>


Pre-removal Operation
  • Engine Cover Removal (Refer to GROUP 11E, Camshaft and Valve Stem Seal ).
  • Air Cleaner Removal (Refer to GROUP 15, Air Cleaner ).
  • Air Hose and Air Pipe Removal (Refer to GROUP 15, Intercooler ).

 Post-installation Operation
  • Air Hose and Air Pipe Installation (Refer to GROUP 15, Intercooler ).
  • Air Cleaner Installation (Refer to GROUP 15, Air Cleaner ).
  • Engine Cover Installation (Refer to GROUP 11E, Camshaft and Valve Stem Seal ).

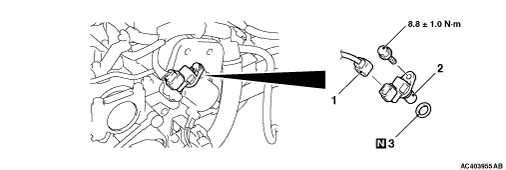

Removal steps


1.
 Camshaft position sensor connector connection


2.
 Camshaft position sensor


3.
 O-ring
