REMOVAL AND INSTALLATION <Except for 4G1>


caution
  • When the detonation sensor replacement is performed, idling speed may be unstable because the MPI engine learning is not completed. To make it stable, make the system learn the idling (Refer to GROUP 00, Precautions before Service - Learning Procedure for Idling in MPI Engine ).
  • Do not drop or hit the detonation sensor against other components. Internal damage may result, and the detonation sensor will need to be replaced.
Pre-removal Operation
  • Inlet Manifold Removal (Refer to GROUP 15, Inlet Manifold ) <134>.
  • Inlet Manifold Removal (Refer to GROUP 15, Inlet Manifold ) <3A9>.
  • Inlet Manifold Removal (Refer to GROUP 15, Inlet Manifold ) <135>.
  • Inlet Manifold Removal (Refer to GROUP 15, Inlet Manifold ) <4A9>.

 Post-installation Operation
  • Inlet Manifold Installation (Refer to GROUP 15, Inlet Manifold ) <134>.
  • Inlet Manifold Installation (Refer to GROUP 15, Inlet Manifold ) <3A9>.
  • Inlet Manifold Installation (Refer to GROUP 15, Inlet Manifold ) <135>.
  • Inlet Manifold Installation (Refer to GROUP 15, Inlet Manifold ) <4A9>.

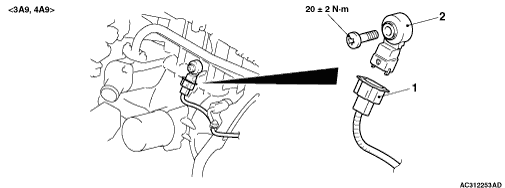

Removal steps


1.
 Detonation sensor connector connection


2.
 Detonation sensor
