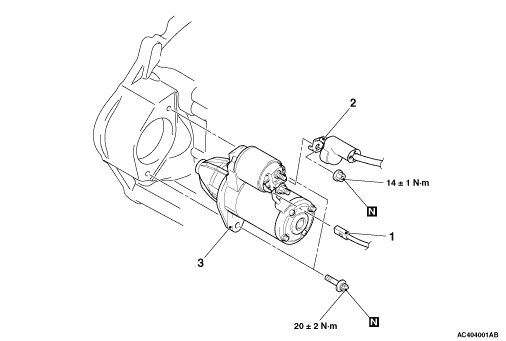

| Removal steps |
|||
| · |
Front bumper clip (Refer to GROUP 11A, Crankshaft Pulley  ). |
||
| 1. |
Starter connector connection |
||
| 2. |
Starter terminal connection |
||
| <<A>> |
3. |
Starter assembly |
|
|
REMOVAL SERVICE POINT |
<<A>> STARTER ASSEMBLY REMOVAL |
| Remove the starter assembly from below the vehicle. |
