REMOVAL AND INSTALLATION <4G1>


Pre-removal Operation
  • Air Hose A Removal (Refer to GROUP 15, Intercooler ).

 Post-installation Operation
  • Air Hose A Installation (Refer to GROUP 15, Intercooler ).

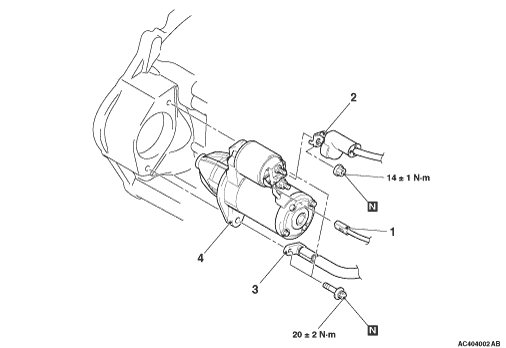

Removal steps


·
 Front bumper clip (Refer to GROUP 11E, Crankshaft Pulley ).


1.
 Starter connector connection


2.
 Starter terminal connection


3.
 Earth connection
<<A>>
4.
 Starter assembly

REMOVAL SERVICE POINT

<<A>> STARTER ASSEMBLY REMOVAL
Remove the starter assembly from below the vehicle.
