EXHAUST PIPE AND
MUFFLER <4G1>
The exhaust system which is compatible in performance and exhaust sporty sound.
- Centre exhaust pipe (integrated with pre-muffler): Emphasize exhaust sporty
sound. Exhaust pressure reduction by adopting 54 mm-diameter pipe.
- Exhaust main muffler: Emphasize exhaust sporty sound by changing inner structure
of main muffler. Exhaust pressure reduction by changing inner structure of main muffler.
- Tail pipe: Adopt large size (73 mm in diameter, 102 mm in length) tail pipe finisher
due to rear view appearance improvement.
- Clamp: Weight reduction in adopting clamp connection which is alternative for flange connection.
- Hanger bracket: Weight reduction in adopting hollow pipe hanger bracket.

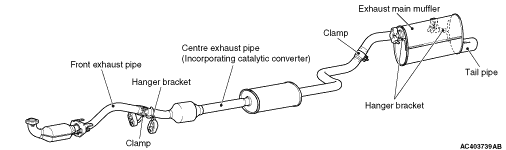

CONSTRUCTION DIAGRAM
)
