EXHAUST PIPE AND
MUFFLER <134, 135>
The exhaust system is compatible in the engine performance and the silence.
- Exhaust system: Commonize exhaust system with 134910 & 135930 and
emphasize sporty sound for 135950.
- Front exhaust pipe (incorporating catalytic converter): Realization of the compatibility
of the engine performance and the exhaust gas emission performance.
- Centre exhaust pipe (integrated with pre-muffler): Exhaust noise reduction in adopting
the expansion type pre-muffler.
- Exhaust main muffler: Exhaust noise reduction in adopting the resonance and expansion
type main muffler.
- Clamp: Weight reduction in adopting clamp connection which is alternative for flange connection.
- Hanger bracket: Weight reduction in adopting hollow pipe hanger bracket.

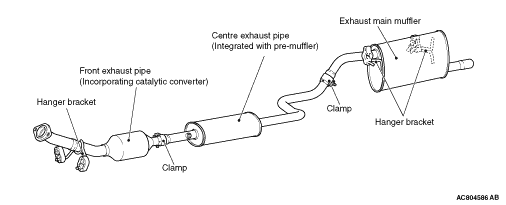

CONSTRUCTION DIAGRAM
)
