REMOVAL AND INSTALLATION <135, 4A9>


Pre-removal and Post-installation Operation
  • Cowl Top Panel Removal and Installation (Refer to GROUP 42, Loose Panel ) <COLT>.
  • Cowl Top Panel Removal and Installation (Refer to GROUP 42, Loose Panel ) <COLT CZ3>.
  • Front Exhaust Pipe Removal and Installation (Refer to ).

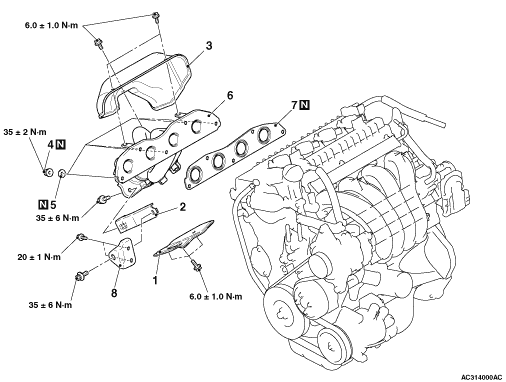

Removal steps


1.
 Exhaust manifold cover


2.
 Exhaust manifold bracket B


3.
 Exhaust manifold cover


4.
 Exhaust manifold nut


5.
 Exhaust manifold washer


6.
 Exhaust manifold


7.
 Exhaust manifold gasket


8.
 Exhaust manifold bracket A
