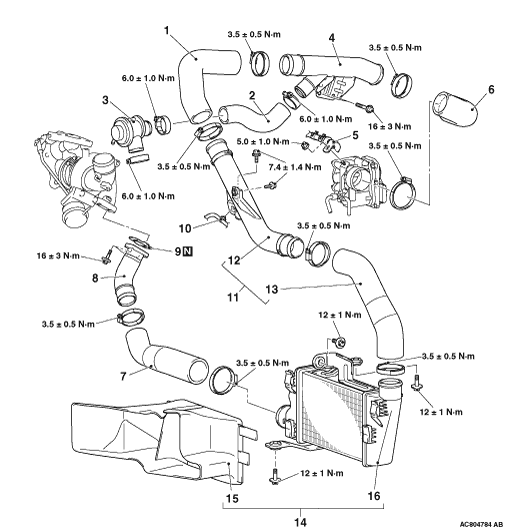

Install by aligning the mating mark on the air pipe A and the mating mark (yellow)
on the air hose B.
|
|
1.Install by aligning the mating mark (yellow) on the air hose B and the
protrusion on the intercooler assembly (outlet side).
|
|
1.Install by aligning the mating mark (yellow) on the air hose A and the
protrusion on the intercooler assembly (inlet side).
|
|
2.Install by aligning the mating marks (yellow) on the air hose A and on the air outlet
fitting.
|
|
Install by aligning the mating mark (yellow) on the air hose D and the protrusion
on the throttle body assembly.
|
|
Align the end of the air hose D so that the width of the yellow line on
the air pipe B should be 4 mm. Install by aligning the mating marks (yellow) on the air pipe
B and on the air hose D.
|
|
Install by aligning the mating mark (white) on the air by-pass valve and the
mating mark on the air intake hose.
|
|
1.Install by aligning the mating mark (white) on the air by-pass hose and the mating mark
(yellow) on the air pipe B.
|
|
2.Install by aligning the mating mark (white) on the air by-pass hose and
the centre of the air by-pass valve rib.
|
|
1.Install by aligning the mating mark (yellow) on the air hose C and the
mating mark on the air pipe A.
|
|
2.Install by aligning the mating marks (yellow) on the air hose C and on the air pipe B.
|
)
)
)
)
)
)
)
)
)
)
)
)
