REMOVAL AND INSTALLATION <4G1>


caution
  • When removing or installing the air flow sensor, be careful not to apply impact to the sensor.
  • Do not reuse the air flow sensor that has been dropped.
Pre-removal Operation
  • Strut Tower Bar Removal (Refer to GROUP 42, Strut Tower Bar ).

 Post-installation Operation
  • Strut Tower Bar Installation (Refer to GROUP 42, Strut Tower Bar ).

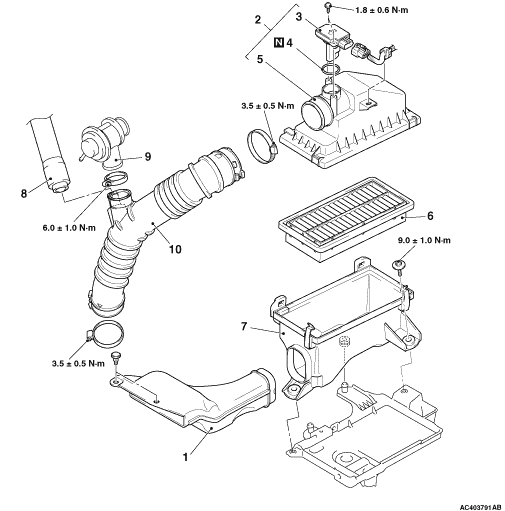

Removal steps


1.
 Air cleaner intake duct


2.
 Air cleaner cover and air flow sensor


3.
 Air flow sensor


4.
 O-ring


5.
 Air cleaner cover


6.
 Air cleaner element


7.
 Air cleaner body assembly


8.
 Breather hose connection

>>B<<
 9.
 Air by-pass valve connection

>>A<<
 10.
 Air intake hose

INSTALLATION SERVICE POINTS

>>A<< AIR INTAKE HOSE INSTALLATION

Install by aligning the mating mark on the air intake hose and the centre of the nipple on the turbocharger assembly.

>>B<< AIR BY-PASS VALVE CONNECTION INSTALLATION

Install by aligning the mating mark (white) on the air by-pass valve and the mating mark on the air intake hose.
