REMOVAL AND INSTALLATION <Except for 4G1>
Pre-removal and Post-installation Operation
Inlet Manifold Removal and Installation [Refer to GROUP 15, Inlet Manifold
<134>,
<3A9>,
<135>,
<4A9>].

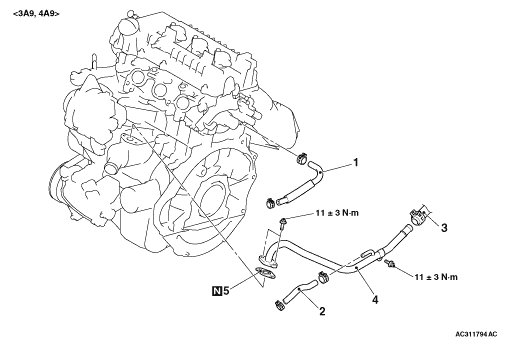

Removal steps
1.
Throttle body water feed hose
2.
Throttle body water return hose
3.
Heater piping hose connection
4.
Water inlet pipe
5.
Gasket
<134>, <3A9>, <135>, <4A9>].<134>, <3A9>, <135>, <4A9>].)
)
