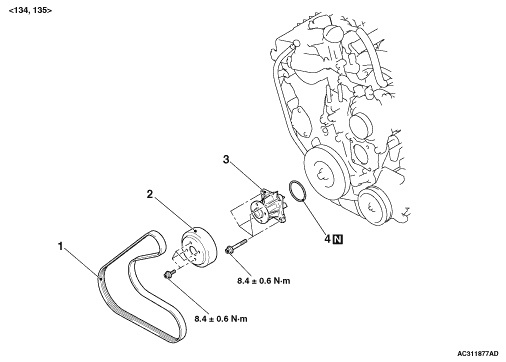

1.Carefully remove the drying material and other foreign materials on the installation
groove for the water pump O-ring.
|
|
|
2.Carefully remove the drying material and other foreign materials on the water pump
installation area of the timing chain case assembly.
|
|
|
3.Sufficiently apply water or coolant to the O-ring to prevent it from dropping using
brushes.
|
|
4.Securely fit the O-ring flange area into the installation groove of the water pump O-ring.
5.Reverse the water pump carefully and check that the O-ring does not fall down.
6.
| caution |
When installing the water pump, pay attention not to let the O-ring fall
down or be bitten. Otherwise, a coolant leak may be caused.
|
Install the water pump to the timing chain case assembly.
| note |
The water pump assembly mounting bolts are also used for the timing chain case assembly.
Thus install the water pump assembly together with the timing chain case assembly, or else immediately
after installing the timing chain case assembly.
|
|
).)
)
)
