- Engine Coolant Draining (Refer to
). - Valve Timing Belt Removal (Refer to GROUP 11E, Timing Belt ).
- Valve Timing Belt Installation (Refer to GROUP 11E, Timing Belt ).
- Engine Coolant Refilling (Refer to ).
Pre-removal Operation
|
Post-installation Operation
|
) |
|
INSTALLATION SERVICE POINTS |

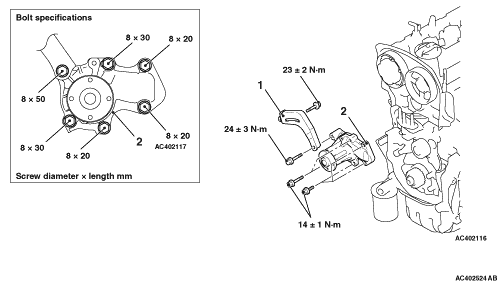

>>A<< WATER PUMP ASSEMBLY INSTALLATION |
| Check if the O-ring behind the water pump is missing, and install the water pump to the cylinder block. |
>>B<< ALTERNATOR BRACE INSTALLATION |
) |
Install the alternator brace nut so that it is in the direction shown. |
