SPECIAL TOOLS


Tool
 Number
 Name
 Use

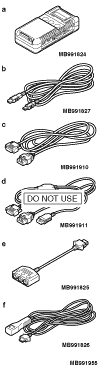

MB991955

    a: MB991824
    b: MB991827
    c: MB991910
    d: MB991911
    e: MB991825
    f: MB991826
 M.U.T.-III sub assembly

    a: Vehicle communication interface (V. C. I.)
    b: M.U.T.-III USB cable
    c: M.U.T.-III main harness A (Vehicles with CAN communication system)
    d: M.U.T.-III main harness B (Vehicles without CAN communication system)
    e: M.U.T.-III measurement adapter
    f: M.U.T.-III trigger harness
caution For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B or C instead, the CAN communication does not function correctly.

  • Reading diagnosis trouble codes
  • Actuator test


MB991223

    a: MB991219
    b: MB991220
    c: MB991221
    d: MB991222
 Harness set

    a: Check harness
    b: LED harness
    c: LED harness adaptor
    d: Probe
 Checking the continuity and measuring the voltage at the harness connector


MB992006
 Extra fine probe
 Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.


MB991871
 LLC changer
 Coolant refilling
