GENERAL INFORMATION

<134, 135>

The fuel system consists of the following components:

Fuel injectors
Fuel delivery pipe
Fuel vapour canister
Fuel tank assembly
Fuel tank pump and gauge assembly
Fuel filler neck
Fuel line pipes

SPECIFICATIONS

Item			Specification
Fuel tank capacity L			47
Fuel pump type			Electric
Fuel filter type			Cartridge (filter-paper type)
Fuel pump pressure regulator control pressure kPa			324
Fuel injector	Type		Electro-magnetic
	Quantity	134	3
		135	4
Evaporative emission control system			Fuel vapour canister

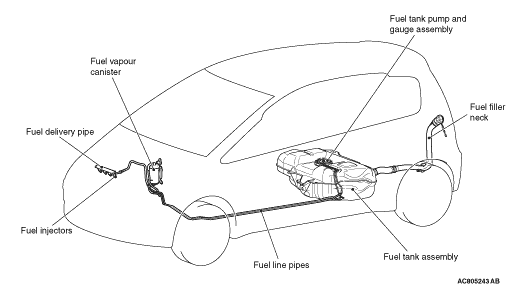

CONSTRUCTION DIAGRAM

This fuel system is designed with consideration for global environment protection to ensure safety at a collision, reduce weight, and improve reliability and quality. This system has the following features:

A fuel return-less system eliminates returned fuel from the engine. The heat that fuel receives from the engine is reduced, minimizing fuel temperature in the fuel tank and controlling the amount of evaporated gas.
A resin coating is treated on the underfloor fuel line pipes, improving reliability.
The use of fuel return-less system allows the return pipe and hose to be discontinued, and reduces weight.
A plastic fuel tank and fuel filler neck are used to reduce weight.

<4G1>

The fuel system consists of the following components:

Fuel injectors
Fuel delivery pipe
Fuel pressure regulator
Fuel vapour canister
Fuel tank assembly
Fuel tank pump and gauge assembly
Fuel filler neck
Fuel line pipes

SPECIFICATIONS

Item		Specification
Fuel tank capacity L		47
Fuel pump type		Electric
Fuel filter type		Cartridge (filter-paper type)
Fuel pressure regulator control pressure kPa		294
Fuel injector	Type	Electro-magnetic
	Quantity	4
Evaporative emission control system		Fuel vapour canister

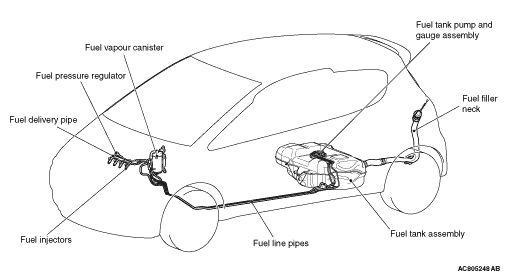

CONSTRUCTION DIAGRAM

A resin coating is treated on the underfloor fuel line pipes, improving reliability.
A plastic fuel tank and fuel filler neck are used to reduce weight.
