Code No. P1978: Throttle Valve Control Servo Malfunction

OPERATION

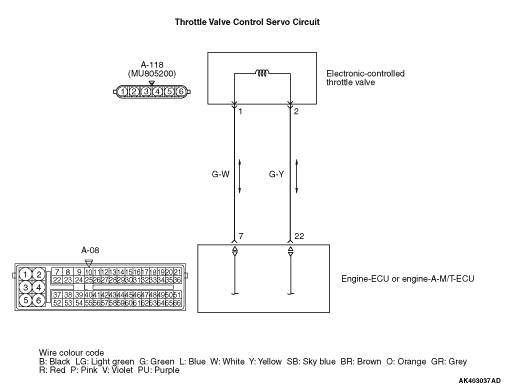

Controls the current that is applied from the engine-ECU or engine-A-M/T-ECU (terminals No. 7, No. 22) to the electronic-controlled throttle valve (terminals No. 1, No. 2).

FUNCTION

Engine-ECU or engine-A-M/T-ECU check whether the throttle valve control servo magneto failed.

TROUBLE JUDGMENT

Check Condition

Battery positive voltage is 8.3 V or higher.

Judgement Criterion

The throttle actuator driver is abnormal.

PROBABLE CAUSES

Failed throttle valve control servo.
Open/short circuit and damage in throttle valve control servo circuit or lose connector contact.
Failed engine-ECU or engine-A-M/T-ECU

DIAGNOSIS PROCEDURE

STEP 1. Connector check: A-118 electronic-controlled throttle valve connector

Q. Is the check result normal?

Go to Step 2 .

Repair.

STEP 2. Perform resistance measurement at A-118 electronic-controlled throttle valve connector.

Disconnect connector, and measure at electronic-controlled throttle valve side.
Resistance between terminal No. 1 and No. 2.

OK: 0.3 - 100 kΩ (at 20 °C)

Q. Is the check result normal?

Go to Step 3 .

Replace throttle body assembly.

STEP 3. Connector check: A-08 engine-ECU connector or engine-A-M/T-ECU connector

Q. Is the check result normal?

Go to Step 4 .

Repair.

STEP 4. Check harness between A-118 (terminal No. 1) electronic-controlled throttle valve connector and A-08 (terminal No. 7) engine-ECU connector or engine-A-M/T-ECU connector.

Check output line for short circuit and damage.

Q. Is the check result normal?

Go to Step 5 .

Repair.

STEP 5. Check harness between A-118 (terminal No. 2) electronic-controlled throttle valve connector and A-08 (terminal No. 22) engine-ECU connector or engine-A-M/T-ECU connector.

Check output line for short circuit and damage.

Q. Is the check result normal?

Go to Step 6 .

Repair.

STEP 6. Check the trouble symptoms.

Q. Is the check result normal?

	Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).

	Replace engine-ECU or engine-A-M/T-ECU then perform the variant coding (Refer to GROUP 00 - Precautions Before Service - How to Perform Variant Coding ).
