Code No. P0638: Throttle Valve Control Servo Circuit Range/Performance Problem

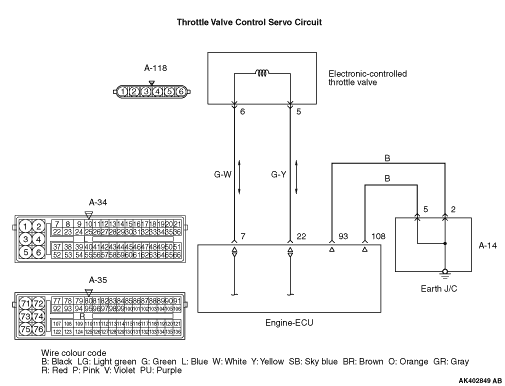

OPERATION

• Controls the current that is applied from the engine-ECU (terminal No. 7 and No. 22) to the electronic-controlled throttle valve (terminals No. 5 and No. 6).

• The engine-ECU (terminal No. 93 and No. 108) is earthed to the vehicle body.


FUNCTION

• Engine-ECU checks the electronic-controlled throttle system for abnormal conditions.


TROUBLE JUDGMENT

• Battery positive voltage is 8.3 V or higher.

• Throttle position sensor (main) output voltage is 0.35 - 4.8 V.

• Drop of throttle position sensor (main) output voltage per 100 milliseconds is 0.04 V or more.


• Throttle position sensor (main) output voltage has continued to be above 0.5 V higher than the target throttle position sensor (main) voltage for 0.5 second.


• Battery positive voltage is 8.3 V or higher.

• Throttle position sensor (main) output voltage is 0.35 - 4.8 V.


• Difference between throttle position sensor (main) output voltage and target throttle position sensor (main) voltage is 1 V or higher for 4 seconds.


PROBALE CAUSES

• Failed throttle valve operation.

• Failed throttle valve control servo.

• Open/short circuit and damage in throttle valve control servo connector contact.

• Failed engine-ECU


	Go to Step 2 .

	Replace the throttle body assembly.

Q. Is the check result normal? Go to Step 3 . Repair or replace the connector.

Disconnect connector, and measure at harness side. Resistance between terminal No. 93 and earth, No. 108 and earth. OK: Continuity (2 Ω or less) Q. Is the check result normal? Go to Step 4 . Check intermediate connector A-14, and repair if necessary. If intermediate connector is normal, check and repair harness between engine-ECU connector and earth Check and repair harness between A-35 (terminal No. 93) engine-ECU connector and earth. Check and repair harness between A-35 (terminal No. 108) engine-ECU connector and earth.

Check output line for short circuit and damage. Q. Is the check result normal? Go to Step 5 . Repair the damaged harness wire.

Check output line for short circuit and damage. Q. Is the check result normal? Go to Step 6 . Repair the damaged harness wire.

	Replace the engine-ECU then perform the variant coding (Refer to GROUP 00 - Precautions Before Service - How to Perform Variant Coding ).

	Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).
