Code No. P0325: Detonation Sensor System






OPERATION




FUNCTION




TROUBLE JUDGMENT


Check Conditions
Judgment Criterion

PROBABLE CAUSES




DIAGNOSIS PROCEDURE


STEP 1. Connector check: A-122 detonation sensor connector



Q. Is the check result normal?

Go to Step 2 .

Repair or replace the connector.

STEP 2. Perform resistance measurement at A-122 detonation sensor connector.




  • Disconnect connector, and measure at harness side.
  • Resistance between terminal No. 1 and earth.
OK: Continuity (2 Ω or less)

Q. Is the check result normal?

Go to Step 6 .

Go to Step 3 .

STEP 3. Connector check: A-08 engine-ECU connector



Q. Is the check result normal?

Go to Step 4 .

Repair or replace the connector.

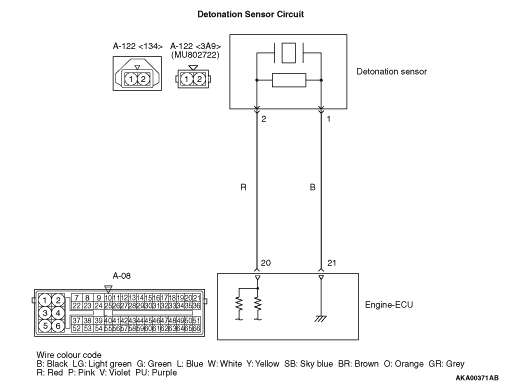

STEP 4. Check harness between A-122 (terminal No. 1) detonation sensor connector and A-08 (terminal No. 21) engine-ECU connector.





  • Check earthing line for open circuit and damage.

Q. Is the check result normal?

Go to Step 5 .

Repair the damaged harness wire.

STEP 5. Replace detonation sensor.



  • After replacing the detonation sensor, re-check the trouble symptoms.

Q. Does trouble symptom persist?

Replace the engine-ECU then perform the variant coding (Refer to GROUP 00 - Precautions Before Service - How to Perform Variant Coding ).
Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).

STEP 6. Connector check: A-08 engine-ECU connector



Q. Is the check result normal?

Go to Step 7 .

Repair or replace the connector.

STEP 7. Check harness between A-122 (terminal No. 2) detonation sensor connector and A-08 (terminal No. 20) engine-ECU connector





  • Check output line for open/short circuit and damage.

Q. Is the check result normal?

Go to Step 5 .

Repair the damaged harness wire.
