Q.
Is the check result normal?
 Go to Step 2 .
 Repair or replace the connector.
|
|
|
- Clutch switch check (Refer to GROUP 21A - Clutch Pedal - Clutch
Switch Check
 )
|
|
|
Q.
Is the check result normal?
|
|
|
Replace the clutch switch.
|
|
|
|
|

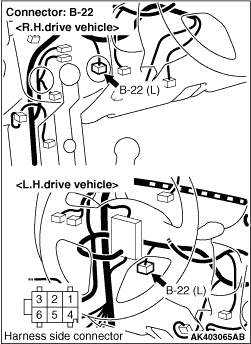

- Disconnect connector, and measure at the harness side.
- Ignition switch: ON
- Voltage between terminal No. 1 and earth.
OK: System voltage
Q.
Is the check result normal?
Go to Step 6 .
Go to Step 4 .
|
|
Q.
Is the check result normal?
Go to Step 5 .
Repair or replace the connector.
|
|
- Check output line for open/short circuit.
Q.
Is the check result normal?
Replace the engine-ECU then perform the variant coding (Refer to GROUP 00 - Precautions
Before Service - How to Perform Variant Coding ).
Repair.
|
|
- Disconnect the connector, and measure at the harness side.
- Resistance between terminal No. 6 and earth.
OK: Continuity (2 Ω or less)
Q.
Is the check result normal?
Go to Step 7 .

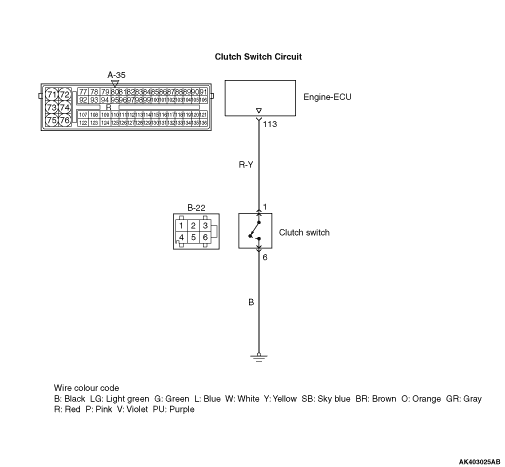

Check and repair harness between B-22 (terminal
No. 6) clutch switch and body earth.
- Check earthing line for open circuit and damage.
|
|
Q.
Is the check result normal?
Go to Step 8 .
Repair.
|
|
- Check output line for damage.
Q.
Is the check result normal?
Replace the engine-ECU then perform the variant coding (Refer to GROUP 00 - Precautions
Before Service - How to Perform Coding ).
Repair.
|
)
)
)
