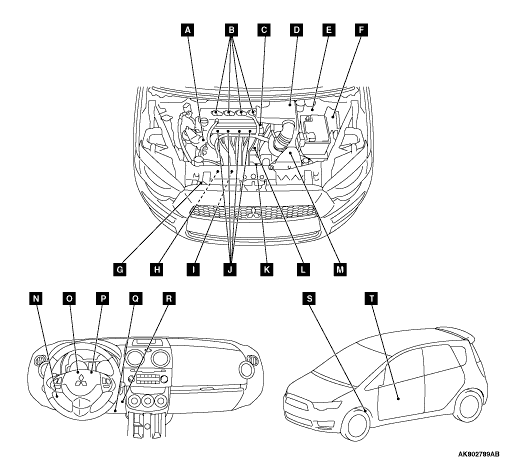

| Name |
Symbol |
Name |
Symbol |
| Accelerator pedal position sensor |
R |
Fuel pump relay (1) and (2) |
N |
| A/C compressor relay |
N |
Hood buzzer switch <Vehicles with AS&G system> |
G |
| AS&G indicator lamp <Vehicles with AS&G system> |
P |
Ignition coil |
B |
| AS&G OFF indicator lamp <Vehicles with AS&G
system> |
P |
Injector |
J |
| Auto stop & go (AS&G) OFF switch <Vehicles
with AS&G system> |
N |
Manifold absolute pressure sensor (with intake air temperature sensor) |
L |
| Battery current sensor (with battery temperature sensor) <Vehicles
with AS&G system> |
E |
Neutral position sensor <Vehicles with AS&G system> |
M |
| Brake vacuum sensor <Vehicles with AS&G system> |
D |
Oxygen sensor (front) |
S |
| Camshaft position sensor |
L |
Oxygen sensor (rear) |
T |
| Clutch switch (A) <Vehicles with AS&G system> |
N |
Oil control valve |
A |
| Clutch switch (B) <Vehicles with AS&G system> |
N |
Purge control solenoid valve |
L |
| Crank angle sensor |
H |
Starter control relay <Vehicles with AS&G system> |
N |
| Detonation sensor |
I |
Starter cut relay <Vehicles with AS&G system> |
N |
| Diagnosis connector |
Q |
Starter relay <Vehicles without AS&G system> |
N |
| Engine coolant temperature sensor |
C |
Throttle position sensor |
K |
| Engine control relay |
N |
Throttle valve control servo |
K |
| Engine-ECU or engine-A-M/T-ECU |
F |
Throttle valve control servo relay |
N |
| Engine warning lamp (check engine lamp) |
O |
