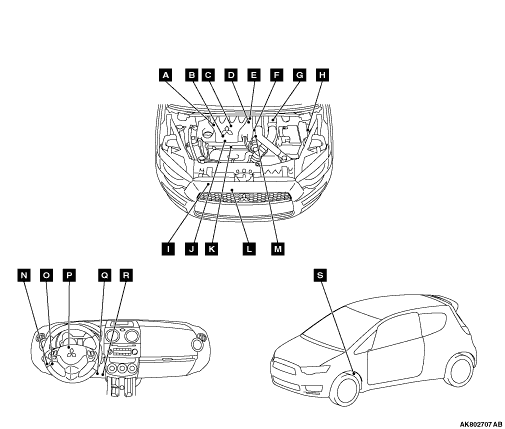

| Name |
Symbol |
Name |
Symbol |
| Accelerator pedal position sensor |
R |
Fuel pump relay (1) and (2) |
N |
| Air flow sensor (with intake air temperature sensor) |
G |
Ignition coil |
J |
| Camshaft position sensor |
F |
Injector |
B |
| Crank angle sensor |
I |
Oil control valve |
A |
| Clutch switch |
O |
Oxygen sensor (front) |
L |
| Detonation sensor |
K |
Oxygen sensor (rear) |
S |
| Diagnosis connector |
Q |
Purge control solenoid valve |
E |
| Engine coolant temperature sensor |
F |
Throttle valve control servo relay |
N |
| Engine control relay |
N |
Throttle position sensor |
D |
| Engine warning lamp (check engine lamp) |
P |
Throttle valve control servo |
D |
| Engine-ECU |
H |
Waste gate solenoid valve |
M |
| Fuel pressure control solenoid valve |
C |
