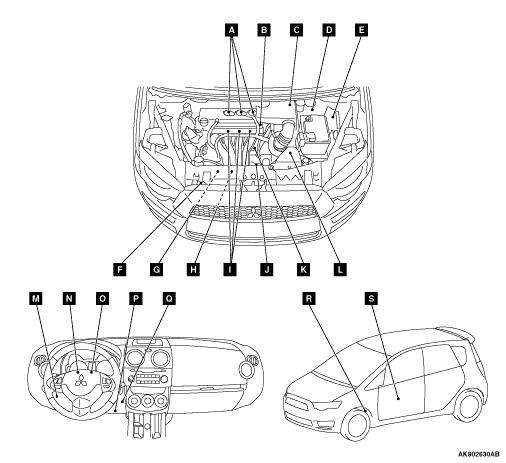

| Name |
Symbol |
Name |
Symbol |
| Accelerator pedal position sensor |
Q |
Engine warning lamp (check engine lamp) |
N |
| A/C compressor relay |
M |
Fuel pump relay (1) and (2) |
M |
| AS&G indicator lamp <Vehicles with AS&G system> |
O |
Hood buzzer switch <Vehicles with AS&G system> |
F |
| AS&G OFF indicator lamp <Vehicles with AS&G
system> |
O |
Ignition coil |
A |
| Auto stop & go (AS&G) OFF switch <Vehicles
with AS&G system> |
M |
Injector |
I |
| Battery current sensor (with battery temperature sensor) <Vehicles
with AS&G system> |
D |
Manifold absolute pressure sensor (with intake air temperature sensor) |
K |
| Brake vacuum sensor <Vehicles with AS&G system> |
C |
Neutral position sensor <Vehicles with AS&G system> |
L |
| Camshaft position sensor |
K |
Oxygen sensor (front) |
R |
| Clutch switch (A) <Vehicles with AS&G system> |
M |
Oxygen sensor (rear) |
S |
| Clutch switch (B) <Vehicles with AS&G system> |
M |
Purge control solenoid valve |
K |
| Crank angle sensor |
G |
Starter control relay <Vehicles with AS&G system> |
M |
| Detonation sensor |
H |
Starter cut relay <Vehicles with AS&G system> |
M |
| Diagnosis connector |
P |
Starter relay <Vehicles without AS&G system> |
M |
| Engine coolant temperature sensor |
B |
Throttle position sensor |
J |
| Engine control relay |
M |
Throttle valve control servo |
J |
| Engine-ECU |
E |
Throttle valve control servo relay |
M |
