Tool
|
Number
|
Name
|
Use
|
|

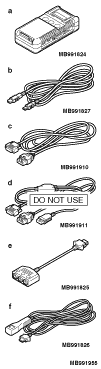

MB991955
- MB991824
- MB991827
- MB991910
- MB991911
- MB991825
- MB991826
|
M.U.T.-III sub assembly
- Vehicle communication interface (V.C.I.)
- M.U.T.-III USB cable
- M.U.T.-III main harness A (Vehicles with CAN communication system)
- M.U.T.-III main harness B (Vehicles without CAN communication system)
- M.U.T.-III measurement adapter
- M.U.T.-III trigger harness
|
- Reading diagnosis code
- MPI system inspection
- Measurement of fuel pressure
| caution |
For vehicles with CAN communication, use M.U.T.-III main harness
A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication
does not function correctly.
|
|
|
MB991987
|
Power plant ECU check harness
|
- Measurement of voltage during troubleshooting
- Inspection using an oscilloscope
- Inspection of the engine-ECU or engine-A-M/T-ECU terminal voltage check
|
|
MB991348
|
Test harness set
|
Measurement of voltage during troubleshooting
|
|
MB991709
|
Test harness
|
- Measurement of voltage during troubleshooting
- Inspection using an oscilloscope
|
|
MB991658
|
Test harness
|
- Measurement of voltage during troubleshooting
- Inspection using an oscilloscope
- Inspection of data list
- Inspection of oxygen sensor
|
|
MB991990
|
Quick connector
|
Measurement of fuel pressure
|
|
MB992001
|
Hose adaptor
|
- Measurement of fuel pressure
- Checking the spray condition of injectors
|
|
MB991981
|
Fuel pressure gauge set
|
Measurement of fuel pressure
|
|
MD998709
|
Adapter hose
|
Measurement of fuel pressure
|
|
MB992076
|
Injector test set
|
- Measurement of fuel pressure
- Checking the spray condition of injectors
|
|
MB991607
|
Injector test harness
|
Checking the spray condition of injectors
|
|
MB992184
|
Injector holder
|
Checking the spray condition of injectors
|
|
MB992088
|
Injector test nipple
|
Check the spray condition of injectors
|
|
MB992106
|
O-ring installer
|
Installation of O-ring on fuel injector injection nozzle side <4A9>
|
)
)
)
)
)
)
)
)
)
)
)
)
)
)
