BASE ENGINE

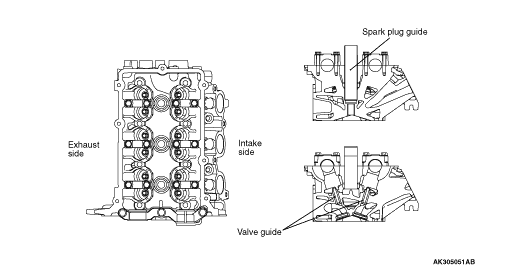

CYLINDER HEAD




The cylinder head is made of aluminum alloy, which is lightweight and has an excellent cooling efficiency.
The pentroof type combustion chamber has a spark plug in the center. The valve angle is relatively small, contributing to size reduction.
The intake and exhaust ports are arranged in a cross-flow construction. Each cylinder has a pair of intake ports on one side and a pair of exhaust ports on the other side.
Each of the intake and exhaust camshafts is supported by 4 bearings. On each camshaft, the thrust load is supported by No. 1 bearing. The No. 1 bearings for the intake and exhaust camshafts have a common bearing cap.

VALVE SEAT




Sintered alloy valve seat
Item
 Intake
 Exhaust
D (Outer diameter) mm
 31.5
 28
d (Inner diameter) mm
 26
 22
h (height) mm
 6.6
 7.3

VALVE GUIDE




The intake and exhaust valves use the same-design valve guide.
Item
 Specification
D (Outer diameter) mm
 10.5
d (Inner diameter) mm
 5
h (height) mm
 34.5

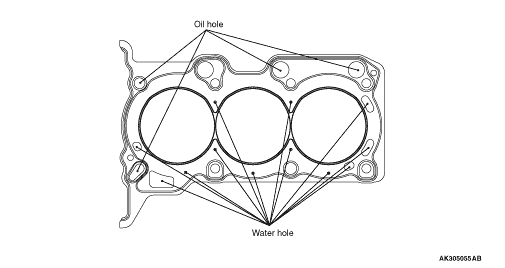

CYLINDER HEAD GASKET




The metal gasket having the one layer of wave stopper is used for the cylinder head gasket.

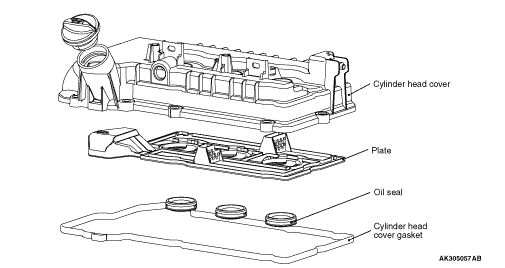

CYLINDER HEAD COVER




A resin cylinder head cover is used for the cylinder head.
The oil plate and the oil seal are integrated with the cylinder head cover assembly.

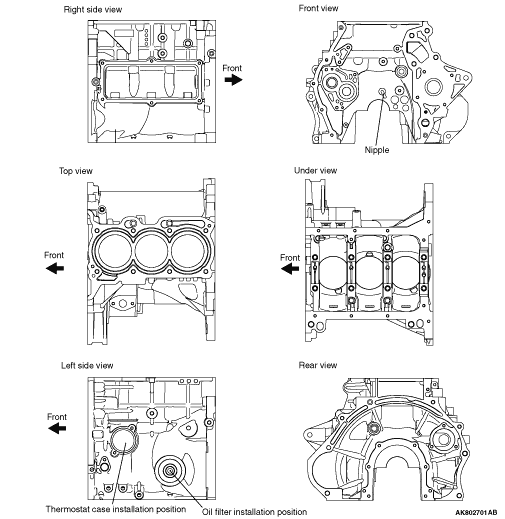

CYLINDER BLOCK




The cylinder block is made of lightweight aluminum alloy.
The crankshaft journal is supported by 4 bearings. The crankshaft thrust load is supported by No. 3 bearing.
The water jacket is of a full-siamese design.
A nipple is provided at the front of the block to supply engine oil onto the timing chain.
Item
 Dimension
Overall height mm
 280
Overall length mm
 292.1
Top face to crankshaft center mm
 205
Crankshaft center to bottom face mm
 75
Bore mm
 75
Bore pitch mm
 83
Stroke mm
 84.8

REAR OIL SEAL CASE




The rear oil seal case is a sheet-metal work. The case is installed with sealant applied onto the mounting face to prevent oil leakage.

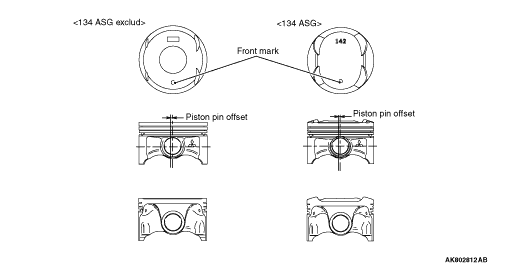

PISTON




The piston is made of special aluminum alloy. Weight reduction is achieved by minimizing the overall height while maximizing the recess on both ends of the piston pin.
The center of the piston pin hole is offset by 0.5 mm from the center of the piston towards the thrust side.
The piston skirt has a streak finish to enhance oil retention and anti-seizing property.
Item
 134 AS&G* exclud
 134 AS&G*
Base diameter mm
 75
 75
Pin diameter mm
 18
 18
Overall height mm
 46.04
 49.8
*Automatic Stop & Go system (AS&G)

PISTON PIN




The piston pin is of a semi-floating type, press-fitted into the connecting rod small end while capable of floating relative to the piston.
Item
 Dimension
Outer diameter mm
 18
Inner diameter mm
 11
Overall length mm
 50

PISTON RING




Each piston is provided with No. 1 and No. 2 compression rings and an oil ring.
Item
 No. 1 piston ring
 No. 2 piston ring
 Oil ring
Shape
 Barrel
 Tapered
 3-piece
Surface treatment (Contact face with cylinder)
 Nitride coated
 Parkerized
 Hard chrome plated
Maker mark <134 AS&G* exclud>
 R
 2R
 No marking
Maker mark <134 AS&G*>
 No marking
 2R
 No marking
*Automatic Stop & Go system (AS&G)

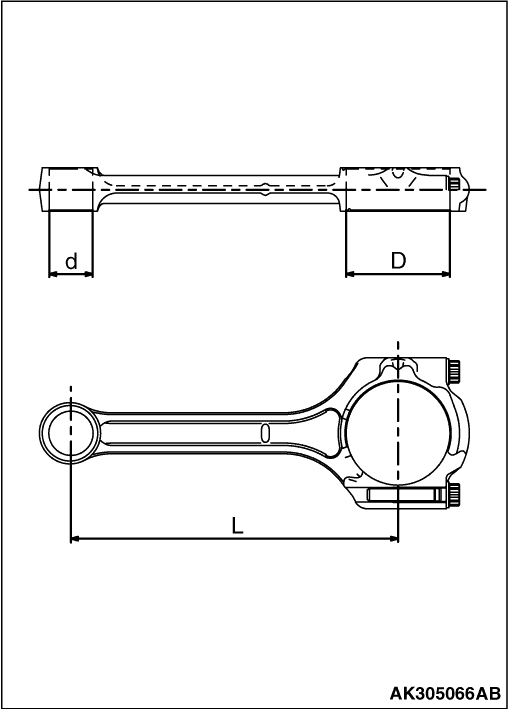

CONNECTING ROD




The connecting rod is made of highly rigid, forged carbon steel. The rod portion has an H-shaped cross section.
The connecting rod big end bearing is lubricated through an oil passage running from the main journal to the crankshaft pin.
Item
 Dimension
d (Small end inner diameter) mm
 18
D (Large end inner diameter) mm
 43
L (Center distance) mm
 135.6

CONNECTING ROD BEARING




The upper and lower connecting rod bearing halves are identical.
The connecting rod bearing is equipped with back metal. While the bearing itself is made of aluminum alloy or copper alloy, the back metal is normally made of steel sheet.
The connecting rod bearing is narrower than the bearing cap, this is to minimize wear.
Item
 Dimension
H (Width) mm
 13.5
A (Thickness) mm
 1.5
Item
 Material
ASG upper
 Cu alloy with overlay
ASG exclud
ASG lower
 AI alloy

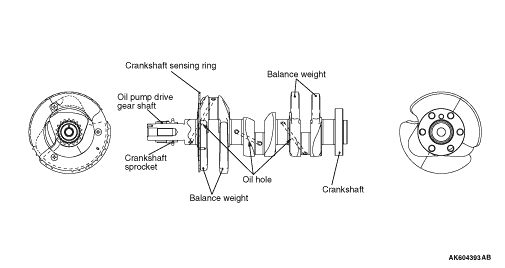

CRANKSHAFT




A casted crankshaft is used for the crankshaft.
The crankshaft consists of 4 main bearings and 4 balance weights.
The crankshaft pins are arranged at 120° intervals.
The oil hole supplies lubrication oil from the journal to the crank pin.
A crankshaft sprocket, an oil pump drive gear shaft, Press-fitted onto the front of the crankshaft.
The crankshaft is also fitted with a crankshaft sensing ring.

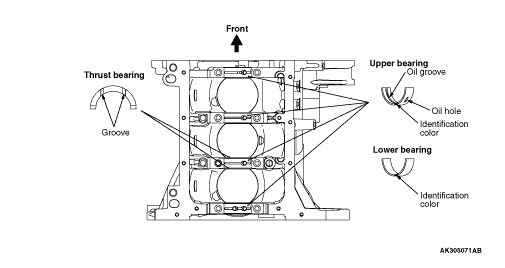

CRANKSHAFT BEARING, THRUST BEARING




The upper crankshaft bearing (with oil groove) is located on the cylinder block side while the lower bearing (without oil groove) is held by the bearing cap.
The crankshaft bearing is equipped with back metal. While the bearing itself is made of aluminum alloy, the back metal is made of steel sheet.
A thrust bearing is installed on both sides of the No. 3 crankshaft bearing.
Item
 Dimension
Crankshaft bearing
 Width mm
 16
Thickness mm
 20
Crankshaft thrust bearing
 Thickness mm
 3.275

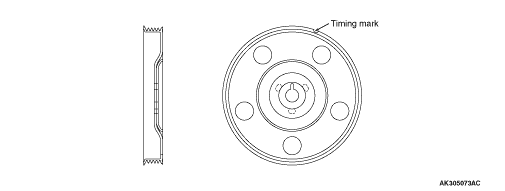

CRANKSHAFT PULLEY




The crankshaft pulley is made of steel plate. The pulley has grooves to engage with a V-ribbed belt (5 ribs), which drives an alternator and a water pump.
An ignition timing mark (notch) is stamped on the flange of the pulley.

FLYWHEEL




The flywheel is made of cast-iron. A separate ring gear is mounted on it.

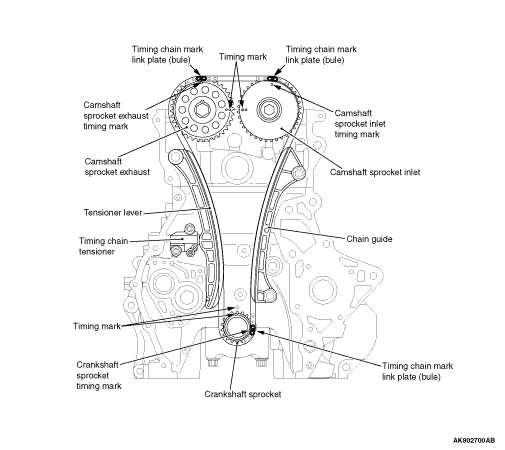

TIMING CHAIN TRAIN




The 2 camshafts are driven by the timing chain via the respective sprockets.
The timing chain, consisting of 122 links, is an endless chain, connecting the crankshaft sprocket with the camshaft sprocket exhaust and Camshaft sprocket inlets.
The timing chain is equipped with 3 mark link plates (blue) to correctly time the 3 sprockets with each other.
The timing chain is tensioned by the timing chain tensioner, which has a built-in plunger with plunger springs.
Item
 No. of teeth
Camshaft sprocket exhaust
 36
Camshaft sprocket inlet
 36
Crankshaft sprocket
 18

TIMING CHAIN TENSIONER




The plunger in the timing chain tensioner directly pushes the tension lever, and the pressure automatically adjusts the timing chain tension.
A cam is provided to lock the plunger in place after the engine stops. This helps prevent the timing chain from wobbling just after the engine starts.
With the timing chain tensioner installed, do not crank the engine in the reverse direction. This will force the plunger to overcome the cam, or even cause other problems.

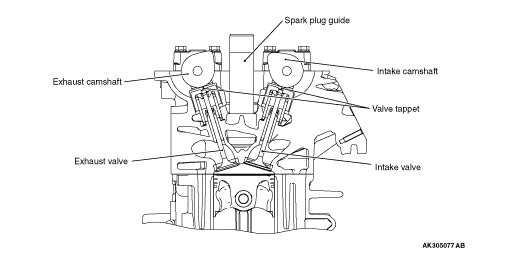

VALVE MECHANISM




The valve mechanism is based on a 4-valve DOHC (Double Over Head Camshaft) design having the camshaft on the upper valve. Each cylinder has 2 intake valves and 2 exhaust valves, arranged in a V-shape pattern.
Camshaft rotation is transmitted via valve tappets to the respective valves which open and close accordingly.

VALVE




The valves have heat-resistance. The entire valve surface is treated with gas nitriding.
Item
 Intake valve
 Exhaust valve
Head diameter mm
 30.5
 25.5
Stem diameter mm
 5.0
 5.0
Overall length mm
 89.61
 90.94

VALVE STEM SEAL




The valve stem seal employs springs to enhance sealing performance, minimizing oil passing down to the port.

VALVE SPRING




The valve spring has a dual pitch spring to prevent surging in the high speed range.
Item
 Specification
Free length mm
 43.1
No. of spring turns
 8.49

VALVE TAPPET




Valve tappets are available in 31 thicknesses, at 0.02 mm intervals between 2.70 mm and 3.30 mm, to ensure correct valve clearance.

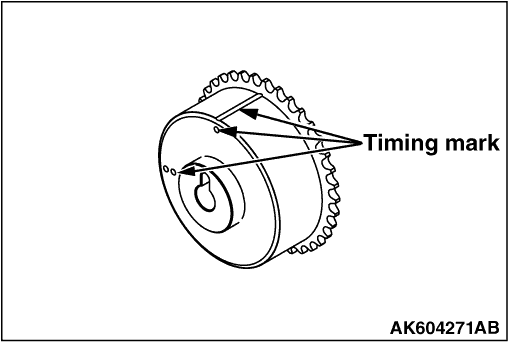

CAMSHAFT SPROCKET INLET




The camshaft sprocket inlet is changed in accordance with the Camshaft sprocket inlet not used any longer. This allows the timing mark location to change.

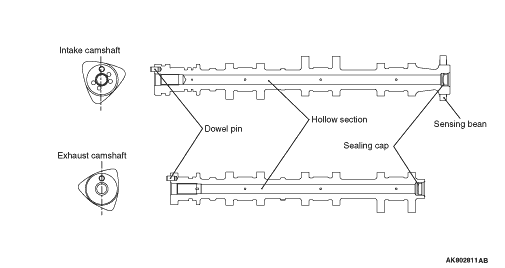

CAMSHAFT




The lightweight camshaft is achieved by the hollow design.
A cam position sensing ring is press-fitted onto the rear portion of the intake camshaft.
Item
 Dimension
Overall length mm
 Intake
 324.5
Exhaust
 278.9
Journal mm
 26
Valve lift mm
 Intake
 8.5
Exhaust
 7.6

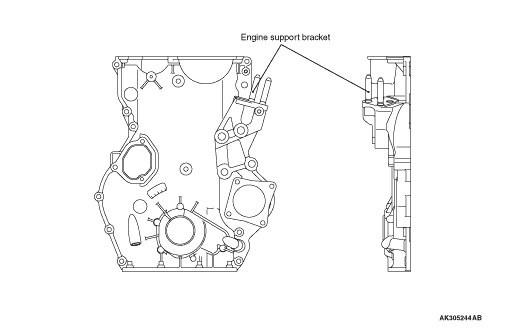

TIMING CHAIN CASE




The engine support bracket, the oil pump and the relief valve are integrated as well as water chamber of the water pump.
