REMOVAL AND INSTALLATION

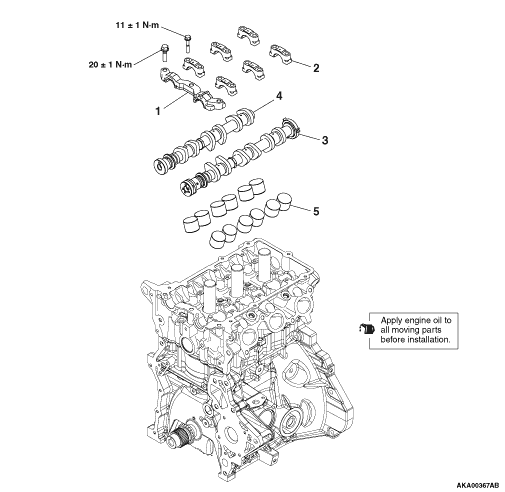

			Removal steps
<<A>>	>>B<<	1.	Front camshaft bearing cap
<<A>>	>>B<<	2.	Camshaft bearing cap
	>>B<<	3.	Camshaft, inlet
	>>B<<	4.	Camshaft, exhaust
<<B>>	>>A<<	5.	Valve tappet

REMOVAL SERVICE POINTS

<<A>> FRONT CAMSHAFT BEARING CAP / CAMSHAFT BEARING CAP REMOVAL

In accordance with the numerical order shown in the illustration, remove the front camshaft bearing cap first, and then remove the installation bolt of each camshaft bearing cap.

<<B>> VALVE TAPPET REMOVAL

To facilitate reassembly, attach a tag to each valve tappet removed that shows where it has been assembled.

INSTALLATION SERVICE POINTS

>>A<< VALVE TAPPET INSTALLATION

Reassemble each valve tappet to the correct location shown on the tag.

>>B<< CAMSHAFT/CAMSHAFT BEARING CAP INSTALLATION

1.Install each camshaft, ensuring that the dowel pin faces the illustrated direction.

2.The No. 2 to No. 5 bearing caps are equally shaped for both the inlet and exhaust camshafts. Be sure to correctly install them by referring to the identification marks.
Identification mark (stamped on the front and No. 2 to No. 5 bearing caps)
I: Inlet
E: Exhaust
3.In accordance with the numerical order shown in the illustration, tighten each camshaft bearing cap first and then tighten the front camshaft bearing cap in several steps.
