While holding the hexagonal portion of the camshaft with a wrench, remove the camshaft
sprocket exhaust bolt.
|
|
While holding the hexagonal portion of the camshaft with a wrench, remove the Camshaft
sprocket inlet bolt.
|
|
1.Apply a proper minimum quantity of engine oil to the following points.
- Camshaft end
- Insertion hole in Camshaft sprocket inlet (all over inside and outside surfaces)
- Threads and head of Camshafto sprocket inlet bolt
- Bearing surface of Camshaft sprocket inlet bolt
2.Install the Camshaft sprocket inlet onto the camshaft.
3.Make sure that the Camshaft sprocket inlet is installed all the way onto the camshaft.
Holding the hexagonal portion of the camshaft with a wrench, check that the Camshaft sprocket
inlet does not turn.
|
|

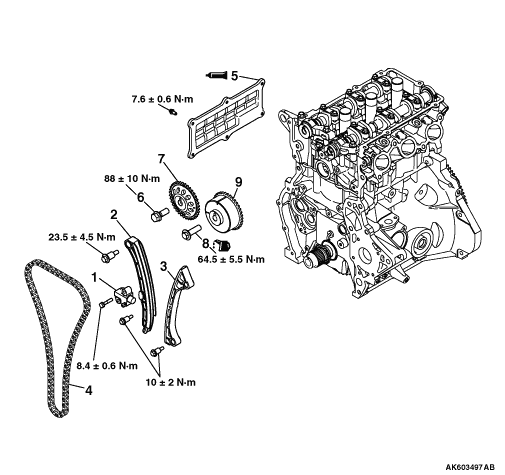

4.While holding the hexagonal portion of the camshaft with a wrench, tighten the Camshaft
sprocket inlet bolt to 64.5 ± 5.5 N·m.
|
|
While holding the hexagonal portion of the camshaft with a wrench, tighten the Camshaft
sprocket exhaust bolt to 88 ± 10 N·m.
|
|
|
1.Remove any liquid gasket remaining on the cylinder block and the balancer shaft side
cover.
|
|
| caution |
The cover should be installed within 3 minutes of applying liquid
gasket.
|
2.Apply a 2.0 ± 0.5 mm bead of liquid gasket as illustrated.
Specified sealant:
Three bond 1217G or equivalent
|
|

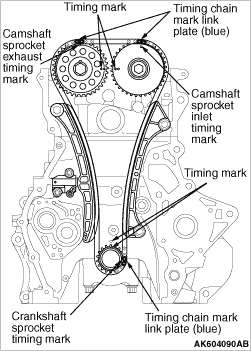

1.Place the timing chain such that the blue link that is away from the other two blue links
of the chain is on the crankshaft side.
|
|
2.Install the timing chain onto the crankshaft sprocket, aligning the blue link with the
mark on the sprocket.
|
|
3.Install the chain onto the Camshaft sprocket inlet, aligning the blue link with the mark
on the sprocket.
|
|
4.Install the chain onto the camshaft sprocket exhaust, aligning the blue link with the
mark on the sprocket.
When doing this, rotate the Camshaft sprocket inlet or the camshaft sprocket exhaust by
a tooth or two and then align the blue link and the mark.
5.Ensure that all of the 3 pairs of the timing marks are aligned.
6.Install the chain guide and the tensioner lever.
|
|
1.While pressing in the plunger of the timing chain tensioner, insert the pin as illustrated
to lock the plunger.
|
|
2.Install the timing chain tensioner onto the cylinder block.
3.Remove the pin from the tensioner. Timing chain should be tensioned via the tensioner
lever.
|
)
)
)
)
)
)
)
)
)
)
)
)
)
