REMOVAL AND INSTALLATION

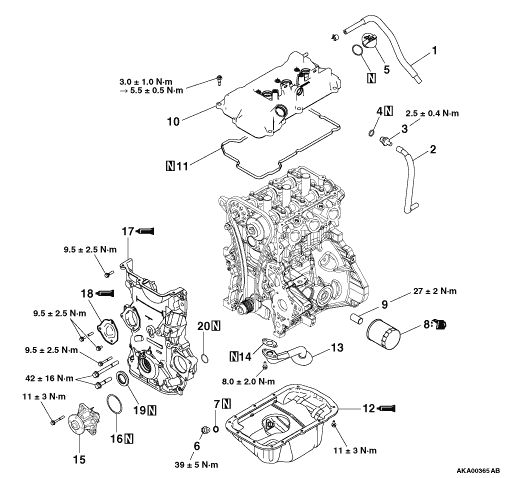

Removal steps


1.
Breather hose


2.
PCV hose


3.
PCV valve


4.
PCV valve gasket


5.
Oil filler cap


6.
Oil drain plug


7.
Oil drain plug gasket
<<A>>
>>H<<
8.
Oil filter
<<B>>
>>G<<
9.
Oil filter stud

>>F<<
10.
Cylinder head cover


11.
Cylinder head cover gasket
<<C>>
>>E<<
12.
Oil pan


13.
Oil screen


14.
Oil screen gasket

>>D<<
15.
Water pump

>>D<<
16.
O-ring

>>C<<
17.
Timing chain case

>>B<<
18.
Cover

>>A<<
19.
Front oil seal


20.
O-ring

REMOVAL SERVICE POINTS



<<A>> OIL FILTER REMOVAL



Remove the oil filter using an oil filter wrench (commercially available).

<<B>> OIL FILTER STUD REMOVAL



Remove the oil filter stud using the screw extractor (Recommended tool: MB992684), or equivalent.
note This recommended tool is a component of the screw extractor set (MB992678).

<<C>> OIL PAN REMOVAL



1.Remove the oil pan retaining bolts.
2.Knock the special tool Oil pan cutter (MD998727) between the oil pan and the cylinder block.

INSTALLATION SERVICE POINTS



>>A<< FRONT OIL SEAL INSTALLATION



Install the front oil seal into the timing chain case using the special tool Differential oil seal installer (MB990699).

>>B<< COVER INSTALLATION


1.Remove any liquid gasket remaining on the timing chain case and the cover.

caution The cover should be installed within 10 minutes of applying liquid gasket.
2.Apply a 2.0 ± 0.5 mm bead of liquid gasket as illustrated.
Specified sealant:
    Three bond 1217G or equivalent

>>C<< TIMING CHAIN CASE INSTALLATION


1.Remove any liquid gasket remaining on the timing chain case, the cylinder block, and the cylinder head.

2.Install the special tool Oil seal guide (MB991993) onto the crankshaft.
3.

caution The timing chain case should be installed within 10 minutes of applying liquid gasket.
Apply a 2.0 ± 0.5 mm bead of liquid gasket to location A, and a 1.75 ± 0.5 mm bead of liquid gasket to location B on the timing chain case respectively as illustrated.
Specified sealant
    A: Three bond 1217G or equivalent
    B: Three bond 1227D or equivalent
4.Install the timing chain case.

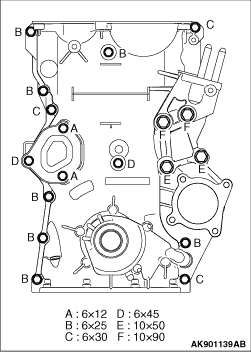

note The retaining bolts have different lengths. Be sure to use the correct bolt for each location.

5.Tighten the chain case retaining bolts to the specified torques.
Tightening torque
    M6: 9.5 ± 2.5 N·m
    M10: 42 ± 16 N·m

>>D<< WATER PUMP / O-RING INSTALLATION



1.Carefully remove the coolant dry matters and the other foreign materials from the O-ring groove of the water pump. In the same way, clean the timing chain case side.
2.Push the flange of the new O-ring into the O-ring groove of the water pump to securely install the O-ring. Sufficiently apply water or the coolant to the O-ring with a brush so that the O-ring does not fall.
3.Gently inverting the water pump, check whether the O-ring does not fall.
4.Install the water pump to the timing chain case. At that time, be careful that the O-ring does not fall or the O-ring is not jammed.

>>E<< OIL PAN INSTALLATION


1.Remove any liquid gasket remaining on the cylinder block, the timing chain case, the oil seal case and the oil pan.
caution The oil pan should be installed within 10 minutes of applying liquid gasket.
2.

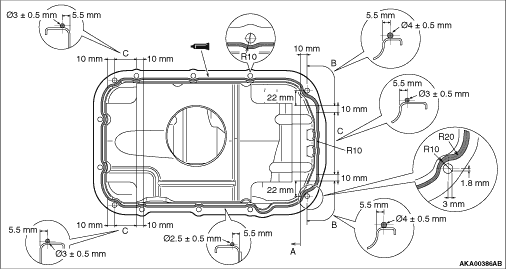

Apply a 2.5 ± 0.5 mm bead of liquid gasket to location A, and a 4.0 ± 0.5 mm bead of liquid gasket to location B, and a 3.0 ± 0.5 mm bead of liquid gasket to location C on the oil pan respectively as illustrated.
Specified sealant:
    Three bond 1217G or equivalent
3.Install the oil pan by tightening the fittings to the specified torque of 11 ± 3 N·m.

>>F<< CYLINDER HEAD COVER INSTALLATION


1.Remove any liquid gasket remaining on the cylinder head cover, the timing chain case and the cylinder head.

2.
caution The timing chain should be installed within 3 minutes of applying liquid gasket.
Apply a 4 mm bead of liquid gasket as illustrated.
Specified sealant:
    Three bond 1217G or equivalent

3.Tighten the bolts to the tightening torque of 3.0 ± 1.0 N·m in the order shown in the illustration.
4.Next, tighten the bolts to the specified torque of 5.5 ± 0.5 N·m in the same order.

>>G<< OIL FILTER STUD INSTALLATION



Using the special tool Oil filter stud setter (MB992676), install the new oil filter stud and tighten it to the specified torque.
Specified torque: 27 ± 2 N·m

>>H<< OIL FILTER INSTALLATION


1.Clean the filter mounting surface on the cylinder block.

2.Apply engine oil to the oil filter gasket as shown in the drawing.

3.
caution Tighten the oil filter using a filter wrench (commercially available). Manual tightening cannot generate the required torque, leading to oil leakage.
Screw in the oil filter until the O-ring contacts the mounting surface. Further tighten by 1 of a turn or to 14 ± 2 N·m using a filter wrench.
