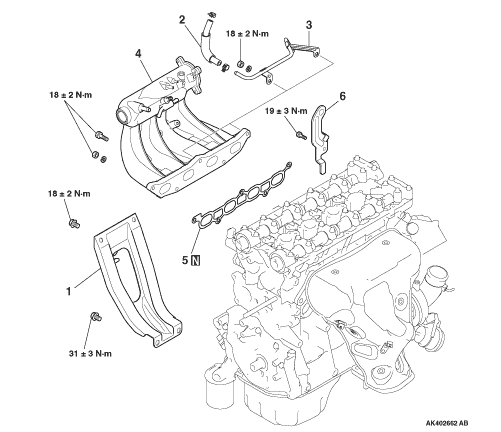

| Removal steps |
|||
>>A<< |
1. |
Inlet manifold stay |
|
| 2. |
Water hose |
||
| 3. |
Water pipe |
||
| 4. |
Inlet manifold |
||
| 5. |
Inlet manifold gasket |
||
| 6. |
Engine hanger |
|
|
INSTALLATION SERVICE POINTS |
>>A<< INLET MANIFOLD STAY INSTALLATION |
) |
Make sure that the inlet manifold stay tightly fits the inlet manifold and the mating
boss of the cylinder block, then tighten bolts to specified torques. Specified tightening torques:
31 ± 3 N·m (M10) |
