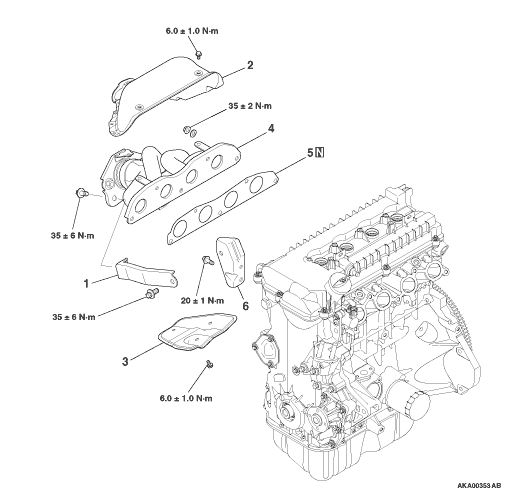

| Removal steps |
|||
>>B<< |
1. |
Exhaust manifold bracket B |
|
| 2. |
Heat protector |
||
| 3. |
Heat protector lower |
||
| 4. |
Exhaust manifold |
||
| >>A<< |
5. |
Exhaust manifold gasket |
|
| 6. |
Exhaust manifold bracket A |
|
|
INSTALLATION SERVICE POINTS |
>>A<< EXHAUST MANIFOLD GASKET INSTALLATION |
) |
Install the exhaust manifold gasket, facing the gasket’s protruded portion in
the illustrated direction. |
>>B<< EXHAUST MANIFOLD BRACKET B INSTALLATION |
) |
Prior to installation, ensure that the exhaust manifold bracket B is closely seated onto
the exhaust manifold and the exhaust manifold bracket A. Then, install the bracket B, tightening
the fittings to 35 ± 6 N·m. |
