REMOVAL AND INSTALLATION

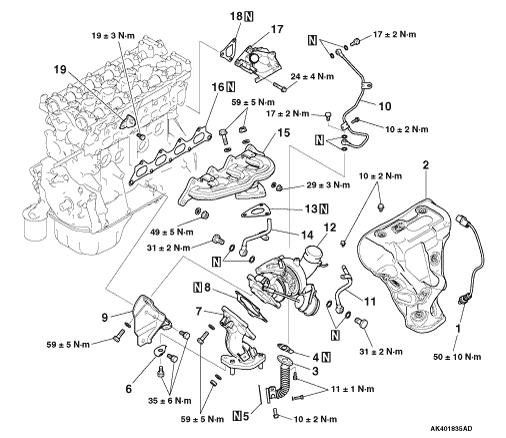

Removal steps 1. Oxygen sensor 2. Turbocharge cover 3. Oil return pipe >>C<< 4. Oil return pipe gasket >>C<< 5. Oil return pipe gasket >>B<< 6. Exhaust fitting bracket 7. Exhaust fitting 8. Exhaust fitting gasket 9. Turbocharger bracket 10. Oil pipe >>A<< 11. Water pipe "B" 12. Turbocharger 13. Turbocharger gasket >>A<< 14. Water pipe "A" 15. Exhaust manifold 16. Exhaust manifold gasket 17. Thermostat housing 18. Thermostat housing gasket 19. Engine hanger

Put the bracket of the water pipe "B" over the bracket of the water pipe "A" as shown in the illustration. Tighten them together with the turbocharger to the tightening torque of 10 ± 2 N·m.

Make sure that the exhaust fitting bracket fits exactly the exhaust fitting and the turbocharger bracket. Tighten the exhaust fitting bracket to the specified torque of 35 ± 6 N·m.

Install the projection of the oil return pipe gasket to the turbocharger and the oil pan as shown in the illustration.
